Description

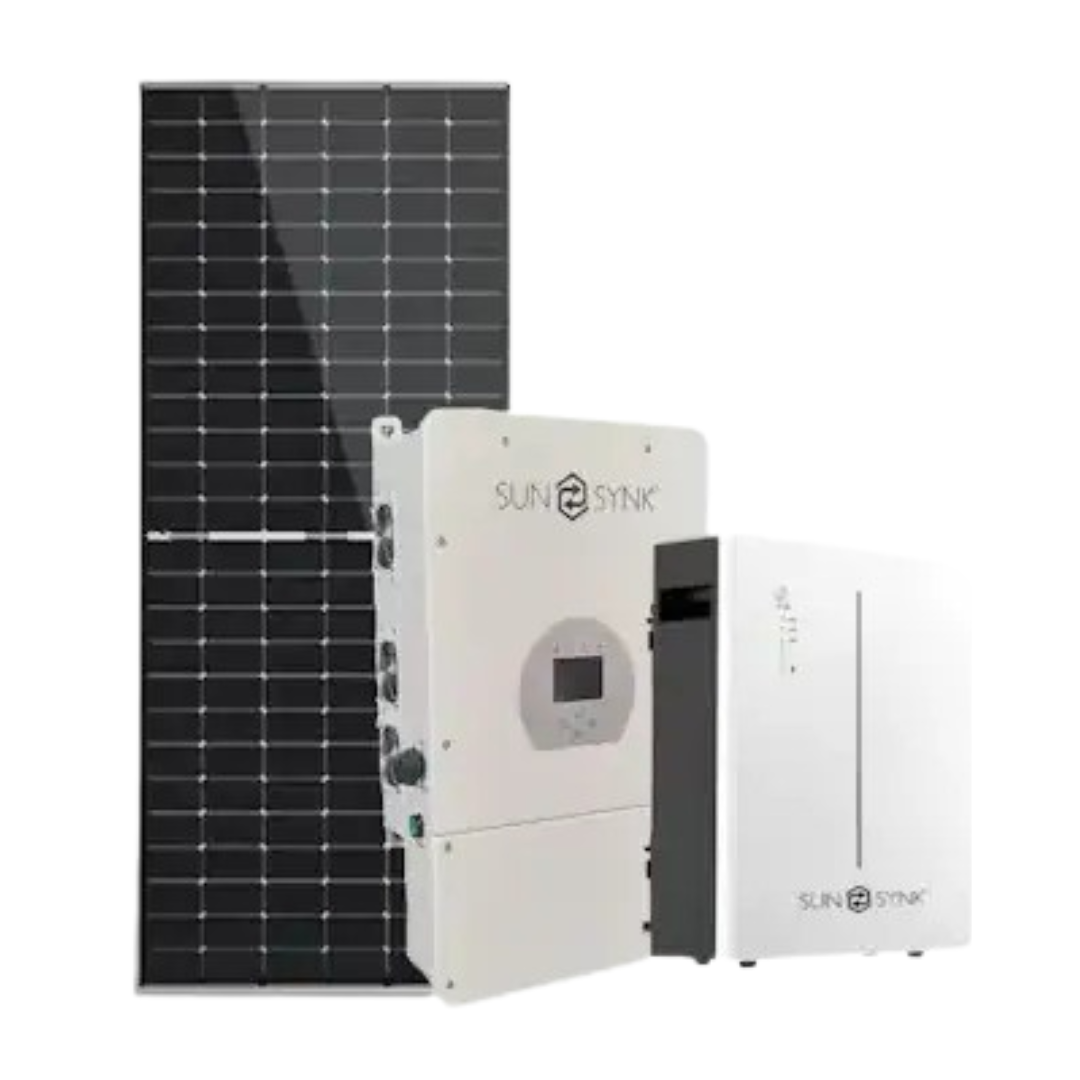

Make: Sunsynk 8kW

Battery Input Data
Battery Type: Lead-acid or Lithium-ion
Battery Voltage Range: 40~60V
Max. Charging Current: 190A
Max. Discharging Current: 190A
Charging Curve: 3 Stages/Equalisation
External Temperature: Sensor Optional
Charging Li-Ion Battery: Self-Adaptation to BMS

PV String Input Data
Max. DC Input Power: 10400W
PV Input Voltage: 370V (100V~500V)
MPPT Range: 125~425V
Full Load DC Voltage Range: 240~425V
Start-up Voltage: 150V
PV Input Current: 22A+22A
No. of MPPT Trackers: 2
No. of Strings Per MPPT Tracker: 2+2

AC Output Data
Rated AC Output and UPS Power: 8000W
Max. AC Power: 8800W
Peak Power: (off-grid) 2 times of rated power, 10 S
AC Output Rated Current: 33.4A/35A
Max AC Output Current: 36.7A/38.5A
Max Continuous AC Passthrough: 50A

Spec Sheet: Sunsynk_8kw

Battery Storage

Battery Chemistry LiFePO4
Nominal Energy: 5.12kWh
Nominal Capacity: 100Ah
Rated Voltage: 51.2Vdc
Operating Voltage Range: 43.2Vdc~57.6Vdc
Max. Charge/Discharge Current: 50A/100A
Scalability: ≤3, (Max. 8 in Parallel

Spec Sheet:Sunsynk_X5.12_Datasheet_v6_English

Solar Panels

Rated Maximum Power: 620w
Open Circuit Voltage: 48.50
Maximum power Voltage: 40.21
Short circuit: 16.13
Maximum Power Current: 15.42
Module efficiency: 23.0
Power Tolerance: 0~+3%

Number of Units: 9

Data Sheet: Datasheet_-_Ja_Solar_JAM72D40_575-600_LB_(EN)_(2)[1]



Balance of System

1 x Keto 200 Amp Battery Disconnect Fuse Breaker

1 x 50m x 6mm SGN Solar Cable Red

1 x 50m x 6mm SGN Solar Cable Black

1 x 50m x 6mm Earth Cable

1 x Set Renusol Roof Mounts (Angle mounts or genius flashing slate covers not included)

1 x Solar Input Protection Protection Box 2 string in and 2 out

1 x AC Protection Box – Surge Arrestor/2 x 50Amp Breakers/63Amp Changeover

2 x Pairs MC4 connectors
