Description

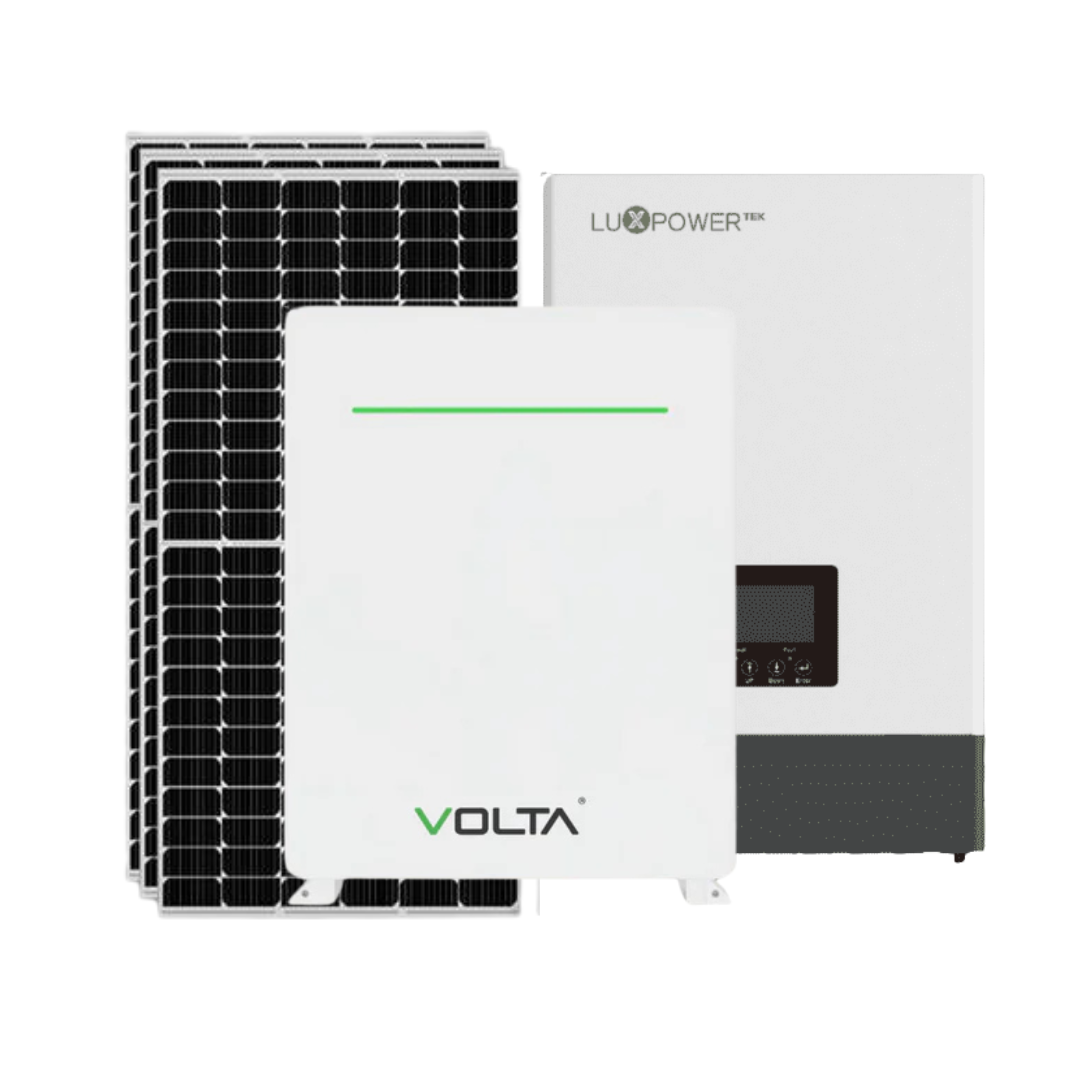

Make: Solar Kit – 5kW Lux Power Off-grid Inverter – Volta 5.12kWh  – 6x 620W  JA Solar Panels

Input Voltage Waveform: Sinusoidal
Nominal Input Voltage: 230Vac
Low Loss Voltage:170Vac+7V
Low loss Return Voltage:180Vac+7V
Hight Loss Voltage: 280Vac+7V
Hight loss Return Voltage: 270Vac+7V
Max AC Input Voltage: 280Vac+7V
Nominal Input Frequency: 50Hz/60Hz
Output Short Circuit Protection: Software protection when off grid
Transfer time: 20ms@Single 30ms@parallel

Spec Sheet Lux Power: Lux-Power-5KW-Off-Grid-SNA5000WPV-User-Manual

Battery Storage

Nominal Energy: 5.12kWh
Nominal Voltage: 51.2V
Nominal Capacity: 100Ah
Cell type: LFP
Charge Voltage: 56.8V
Discharge: 100A
Discharge Cut Off voltage: 44.8V
Parallel Function: Auto-dial Can

Download Spec Sheet :  VOLTA NEW STAGE FAMILY

Solar Panels

Rated Maximum Power: 620
Open Circuit Voltage: 48.50
Maximum power Voltage: 40.21
Short circuit: 16.13
Maximum Power Current: 15.42
Module efficiency: 23.0
Power Tolerance: 0~+3%

Number of Units: 6

Data Sheet: JAM66D45 595-620 LB Global_EN_20240326A
