Description

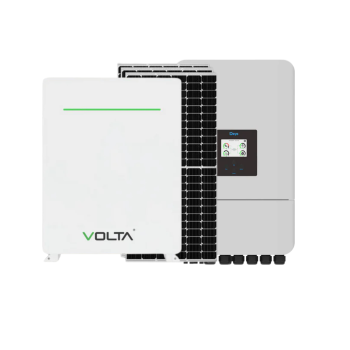

Make: Deye Special- 10kW Inverter – 5.12 kWh Storage – 7.44kW Of PV
Battery Input Date
Battery type: Lead-acid or Li-Ion
Battery Voltage Range(V): 40-60V
Max. Charging Current(A): 210A
Max. Discharging Current(A): 210A
Charging curve: 3 Stages/Equalization
External Temperature Sensor: Yes
Charging Strategy : Self adaption to BMS
PV String Input Data
Max. DC Input Power (W): 13000
PV Input Voltage (V): 550(150~800)
MPPT Range (V): 200-650
No.of Strings Per MPPT Tracker: 2+1
Start-up Voltage (V): 150V
PV Input Current (A): 22A+22A
No.of MPPT Trackers: 2
AC Output Data
Rated AC Output and UPS Power: 8000W
Max. AC Output Power: 8800W
Peak Power(off grid): 2 times of rated power, 10 S
AC Output Rated Current: 35A
Max. AC Current: 35A
Max. Continuous AC Pass through: 50A
Spec Sheet: 10kW-Deye-Sunsynk-Hybrid-PV-Inverter-Datasheet
Battery Storage
Nominal Energy: 5.12kWh
Nominal Voltage: 51.2V
Nominal Capacity: 100Ah
Cell type: LFP
Charge Voltage: 56.8V
Discharge: 100A
Discharge Cut Off voltage: 44.8V
Parallel Function: Auto-dial Can
Download Spec Sheet : VOLTA NEW STAGE FAMILY
Solar Panels
Rated Maximum Power: 620
Open Circuit Voltage: 48.50
Maximum power Voltage: 40.21
Short circuit: 16.13
Maximum Power Current: 15.42
Module efficiency: 23.0
Power Tolerance: 0~+3%
Number of Units: 12
Data Sheet: JAM66D45 595-620 LB Global_EN_20240326A
Balance of System
1 x Keto 125Amp Battery Disconnect Fuse Breaker
1 x 50m x 6mm SGN Solar Cable Red
1 x 50m x 6mm SGN Solar Cable Black
1 x 50m x 6mm Earth Cable
1 x Set Renusol Roof Mounts (Angle mounts or genuis flashing slate covers not included)
1 x Solar Input Protection Protection Box 2 string in and 2 out
1 x AC Protection Box – Surge Arrestor/2 x 50Amp Breakers/63Amp Changeover
2 x Pairs MC4 connectors
Full Installation Notes
- Installation offering for JHB, Port Elizabeth, Alexandria, Cape Town, Pretoria and within 50kms of those main centers.
- No extreme angle roof types (>30 degrees) and no slate roof types that may require slate kits.
- Extra will have to be charged if panel lifts are required or ladder rental for very high roofs.
- Offer assumes that installation point is within 10M from mains db board.
- Mains DB must have an existing Certificate of Compliance, extra will have to be charged if a COC needs to be done.
- Offer valid while stocks last.
