Description

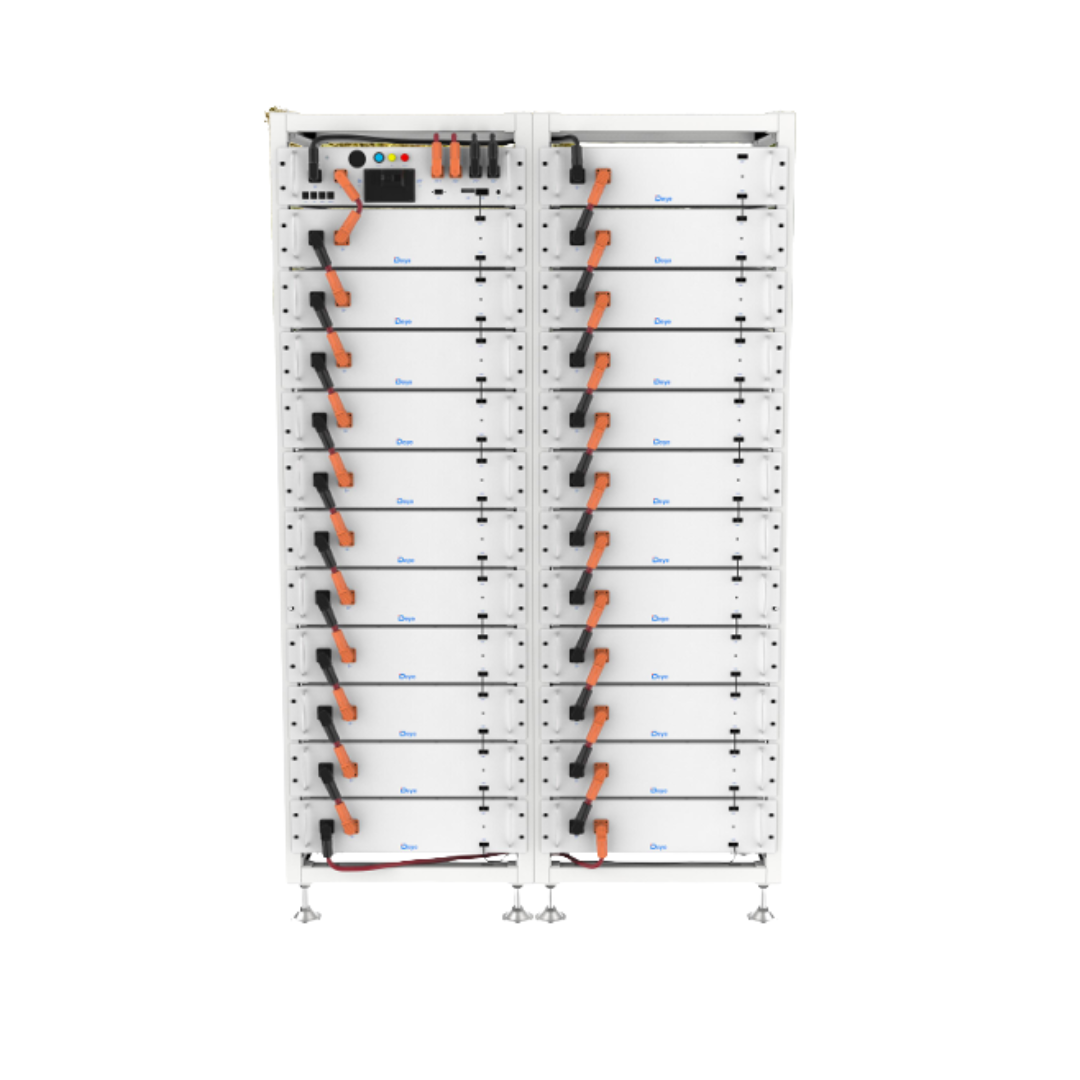

Make: Deye 76.8kWh Battery Stack
Battery
Cell Chemistry LiFePO4
Module Energy (kWh) 7.68
Module Nominal Voltage (V) 38.4
Module Capacity (Ah) 200
Module Dimension (W/D/H,mm) 576*601*135
Module Weight Approximate (kg) 65
Installation Location Rack Mounting
Storage Temperature (°C) 0~35
Recommend Depth of Discharge 90%
Warranty 10 years
Key features:
- Quick installation standard embedded designed module is
comfortable for installation and maintenance - The whole module is non-toxic, non-polluting and
environmentally friendly - Working temperature range is from -20°C to 55°C, with
excellent discharge performance and cycle life. - Cathode material is made from LiFePO4 with safety
performance and long cycle life, The module has less self
discharge, up to 6 months without charging it on shelf, no
memory effect, excellent performance of shallow charge
and discharge.
Spec Sheet: Datasheet–A-HV-3U Battery BOS-A V1.1
