Cell Chemistry: LiFePO4
Module Energy(kWh): 5.12
Module Nominal Voltage (V): 51.2
Module Capacity(Ah): 100
Battery Module Qty in series.(Optional): 12
System Nominal Voltage (V): 614.4
System Operating Voltage (V): 499.2~700
System Energy (kWh): 61.44
System Usable Energy (kWh): 55.29

Spec Sheet: Deye Battery HV – Datasheet[1]

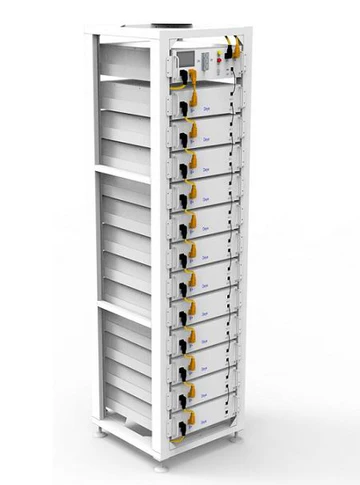

• Quick installation standard of 19-inch embedded designed module is comfortable for installation and maintenance.
• Cathode material is made from LiFePO4 with safety performance and long cycle life
• The module has less self-discharge, up to 6 months without charging it on shelf
• The whole module is non-toxic, non-polluting and environmentally friendly.
• Multiple battery modules can be in parallel for expanding capacity and power. Support USB upgrade, wifi upgrade(optional), remote up grade(Compatible with Deye inverter).
• Working temperature range is from -20°C to 55°C, with excellent discharge performance and cycle life.
