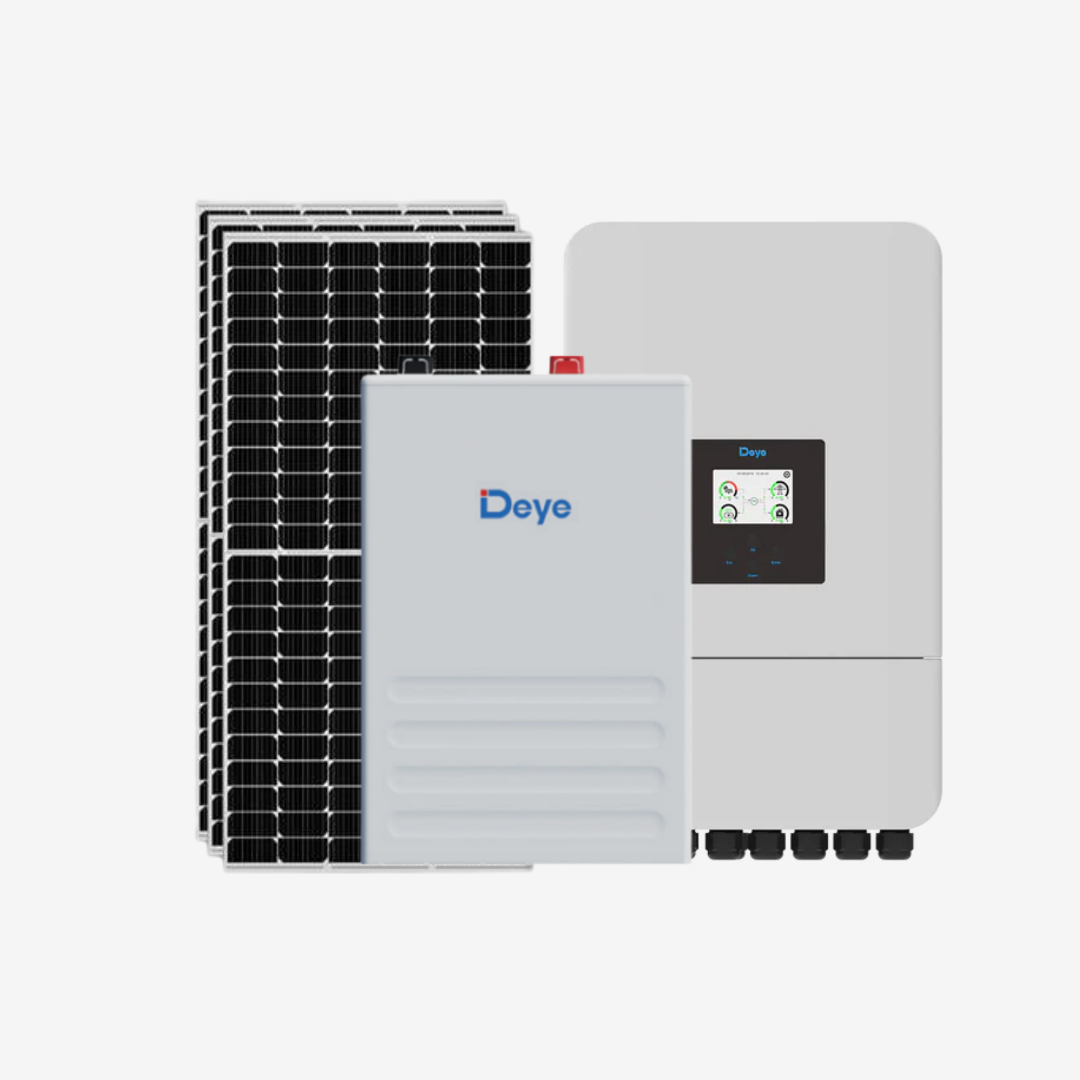

Deye Special Kit Hybrid- 8.8kW Inverter -16 kWh Storage -5.4kW Of Pv - Fully Installed

Deye Special Kit Hybrid- 8.8kW Inverter -16 kWh Storage -5.4kW Of Pv – Fully Installed

R119,721.45

Brand: Deye
1 x Deye 8.8kW Hybrid Inverter
1 x Deye 16kw SE
9 x JA N-type Bifacial 630W



SKU: D8kw-9 Categories: , Tags: , , , ,
Deye

Description

Make:  Deye Special Kit Hybrid- 8.8kW Inverter -16 kWh Storage -5.6kkW Of Pv

Battery Input Data
Battery Type: Lead -Acid or Li-on
Battery Voltage Range (V): 40~60V
Max. Charging Current (A): 190A
Max. Discharging Current (A): 190A
Charging Curve: 3 Stages/Equalization
External Temperature Sensor: Optional
Charging Li-Ion Battery: Self- adaption to BMS

PV String Input Data
Max. DC Input Power (W): 10400W
PV Input Voltage (V): 550V (150V~800V)
MPPT Range (V): 200V-650V
No.of Strings Per MPPT Tracker: 160V
Start-up Voltage (V): 13A+13A
PV Input Current (A): 2
No.of MPPT Trackers: 1+1

AC Output Data
Rated AC Output and UPS Power: 8000W
Max. AC Output Power: 8800W
Peak Power(off grid): 2 time of rated power, 10 S
AC Output Rated Current: 12A
Max. AC Current: 18A
Max. Continuous AC Pass through: 50A

Spec Sheet: Deye-hybridinvertersun-8-10-12k-sg04lp3-1

Battery Storage

Brand: Deye
Battery Chemsitry : LiFePO4
Total Energy :16kWh
Nominal Voltage :  51.2V
Operating Voltage Range :44.8~57.6V
Charging Voltage: 55.2V
Max. Charge/Discharge Current: 230A

Download Deye Spec Sheet  Deye 16kw SE

Solar Input

Solar Panels

Rated Maximum Power: 630w
Length: 2,382 mm
Width: 1,134 mm
Depth: 30 mm
IMP: 15.48
VMP: 40.70V
Isc: 16.18A
Voc: 48.90 V

Number of Units: 9

Data Sheet: Datasheet_ : 630W n-type Doubls Glass Bifacial Modules

Balance of System

1 x Keto 200Amp Battery Disconnect Fuse Breaker

1 x 50m x 6mm SGN Solar Cable Red

1 x 50m x 6mm SGN Solar Cable Black

1 x 50m x 6mm Earth Cable

1 x Set Renusol Roof Mounts (Angle mounts or genuis flashing slate covers not included)

1 x Solar Input Protection Protection Box 2 string in and 2 out

1 x AC Protection Box – Surge Arrestor/2 x 50Amp Breakers/63Amp Changeover

2 x Pairs MC4 connectors

Full Installation Notes

  • Installation offering for JHB, Port Elizabeth, Alexandria, Cape Town, Pretoria and within 50kms of those main centers.
  • No extreme angle roof types (>30 degrees) and no slate roof types that may require slate kits.
  • Extra will have to be charged if panel lifts are required or ladder rental for very high roofs.
  • Offer assumes that installation point is within 10M from mains db board.
  • Mains DB must have an existing Certificate of Compliance, extra will have to be charged if a COC needs to be done.
  • Offer valid while stocks last.
