Description

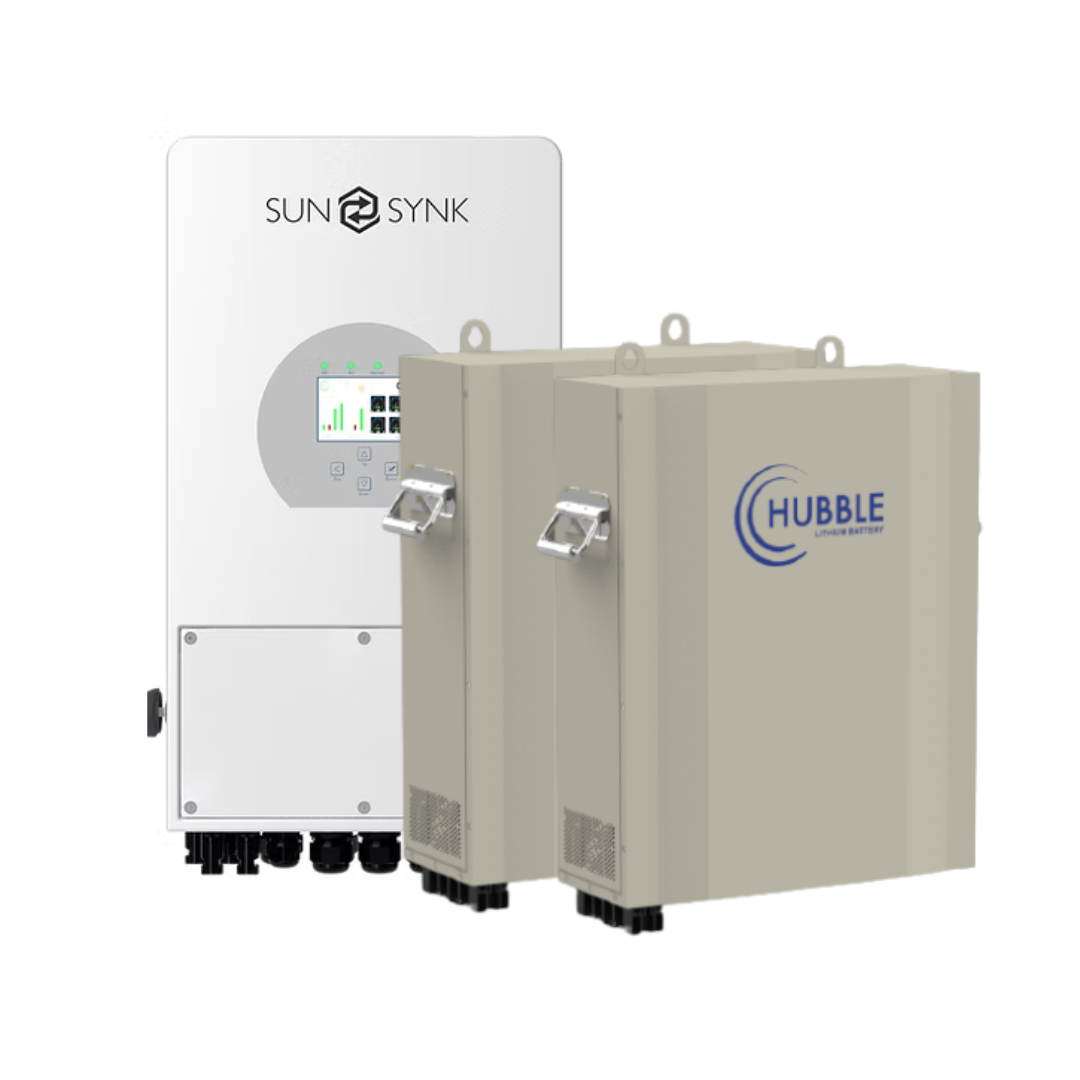

Make: Solar Kit II 3A- Sunsynk 10kW – 2x Hubble Am2

Inverter

Battery input Data
Battery Type: Lead-acid or Lithium-ion
Battery Voltage Range:: (V) 40~60V
Max. Charging Current: (A)220A
Max. Discharging Current: (A)220A
Charging Curve: 3 Stages/Equalisation
External Temperature Sensor: Yes
Charging Strategy for Li-Ion Battery: Self-Adaptation to BMS

PV string Input Data
Max. DC Input Power: 13000W
Rated PV Input Voltage: 370V (125~500V)
Start-up Voltage: 125V
MPPT Voltage Range: 150V-425V
Full Load DC Voltage Range: 200V-425V
PV Input Current: 26A+26A+26A
Max. PV Isc: 44A+44A+44A
No. of MPPT / Strings Per MPPT: 3 / 2+2+2

AC Output Data
Rated AC Output Active Power: 10000
Max AC Output Active Power: 11000
AC Output Rated Current: 45.5/43.5A
Max. AC Output Current: 50/47.9A
Max. Continuous AC Passthrough: 70A
Peak Power (Off Grid): 2 Time of Rated Power, 10 S
Power Factor Adjustment Range: 0.8 Leading to 0.8 Lagging
Power Factor: 1

Sunsynk 10kw  : Datasheet Sunsynk Inverter

Battery
Model: Hubble Am-2
Rated Capacity (5HR):100Ah
Nominal Voltage: 51.0V
Discharge Cutoff Voltage: 42.0V
Equalized Charge Voltage: 54.0V
Max. Continuous Charging Current:100A
Max. Continuous Discharging Current:100A
C Rating: 1.0C
Weight: Approx. 42kg
Display: None

Hubble am2:Am2 spec
