Description

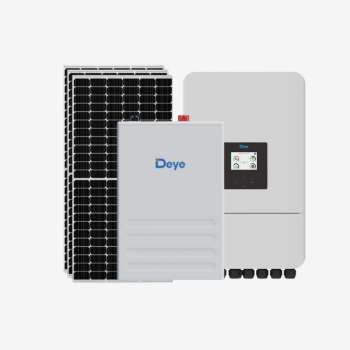

Make: Deye Special- 10kW Inverter – 5.12 kWh Storage -12x Ja 620wp

Battery Input Date
Battery type: Lead-acid or Li-Ion
Battery Voltage Range(V): 40-60V
Max. Charging Current(A): 210A
Max. Discharging Current(A): 210A
Charging curve: 3 Stages/Equalization
External Temperature Sensor: Yes
Charging Strategy : Self adaption to BMS

PV String Input Data
Max. DC Input Power (W): 13000
PV Input Voltage (V): 550(150~800)
MPPT Range (V): 200-650
No.of Strings Per MPPT Tracker: 2+1
Start-up Voltage (V): 150V
PV Input Current (A): 22A+22A
No.of MPPT Trackers: 2

AC Output Data
Rated AC Output and UPS Power: 8000W
Max. AC Output Power: 8800W
Peak Power(off grid): 2 times of rated power, 10 S
AC Output Rated Current: 35A
Max. AC Current: 35A
Max. Continuous AC Pass through: 50A

Spec Sheet: 10kW-Deye-Sunsynk-Hybrid-PV-Inverter-Datasheet

Battery Storage

Battery Chemistry: LifePo
Capacity: 100Ah
Scalability: Max 32 pcs in parallel
Nominal Voltage: 51.2V
Operating Voltage: 44.8V ~ 57.6V
Nominal Energy: 100A

Download Deye Spec Sheet  deye-se-f5f5-prof5-plusf12f12-maxf16f16-max-

Solar Panels

Rated Maximum Power: 620
Open Circuit Voltage: 48.50
Maximum power Voltage: 40.21
Short circuit: 16.13
Maximum Power Current: 15.42
Module efficiency: 23.0
Power Tolerance: 0~+3%

Number of Units: 12

Data Sheet: JAM66D45 595-620 LB Global_EN_20240326A
