Description

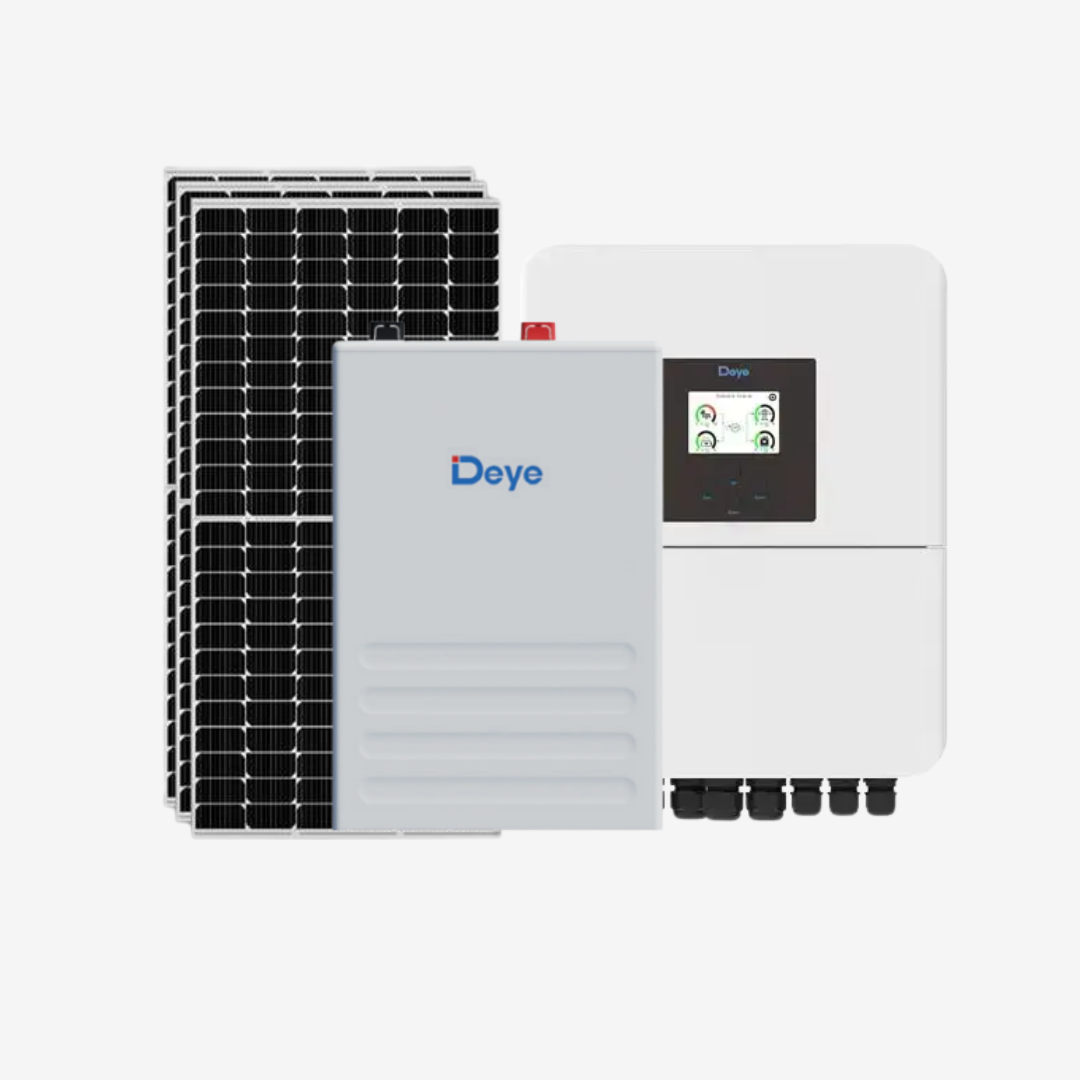

Make: Deye Special Kit Eco III- 5.12 kWh Storage – 5.5kW Inverter -3.66kW Of Pv

Inverter

Battery Input Date
Battery type: Lead-acid or Li-Ion
Battery Voltage Range(V): 40-60V
Max. Charging Current(A): 120A
Max. Discharging Current(A): 120A
Charging curve: 3 Stages/Equalization
External Temperature Sensor: Optional
Charging Strategy : Self adaption to BMS

PV String Input Data
Max. Dc Input Power(W): 6500W
PV input Voltage: 370V (100V-500V)
MPPT Range(V): 125-425V
Dc Voltage Range: 240V-425V
Start up voltage: 150V
Pv Input Current(A): 11A + 11A
No. of MPPT Trackers: 2
No. of Strings Per MPPT Tracker: 1+1

AC Output Data
Rated AC Output and UPS Power: 5000W
Max. AC Output Power: 5500W
Peak Power(off grid): 2 times of rated power, 10 S
AC Output Rated Current: 21.7A
Max. AC Current: 25A
Max. Continuous AC Pass through: 35A

Spec Sheet: 5kW-Deye-Sunsynk-Hybrid-PV-Inverter-Datasheet

Battery Storage

Battery Chemistry: LifePo
Capacity: 100Ah
Scalability: Max 32 pcs in parallel
Nominal Voltage: 51.2V
Operating Voltage: 44.8V ~ 57.6V
Nominal Energy: 100A

Download Deye Spec Sheet  deye-se-f5f5-prof5-plusf12f12-maxf16f16-max-

Solar Panels

Rated Maximum Power: 620
Open Circuit Voltage: 48.50
Maximum power Voltage: 40.21
Short circuit: 16.13
Maximum Power Current: 15.42
Module efficiency: 23.0
Power Tolerance: 0~+3%

Number of Units: 6

Data Sheet: JAM66D45 595-620 LB Global_EN_20240326A

Balance of System

1 x Keto 125Amp Battery Disconnect Fuse Breaker

1 x 50m x 6mm SGN Solar Cable Red

1 x 50m x 6mm SGN Solar Cable Black

1 x 50m x 6mm Earth Cable

1 x Set Renusol Roof Mounts (Angle mounts or genuis flashing slate covers not included)

1 x Solar Input Protection Protection Box 2 string in and 2 out

1 x AC Protection Box – Surge Arrestor/2 x 50Amp Breakers/63Amp Changeover

2 x Pairs MC4 connectors

Full Installation Notes

• Installation offering for JHB, Port Elizabeth, Alexandria, Cape Town, Pretoria and within 50kms of those main centers.
• No extreme angle roof types (>30 degrees) and no slate roof types that may require slate kits.
• Extra will have to be charged if panel lifts are required or ladder rental for very high roofs.
• Offer assumes that installation point is within 10M from mains db board.
• Mains DB must have an existing Certificate of Compliance, extra will have to be charged if a COC needs to be done.
• Offer valid while stocks last.
