Description

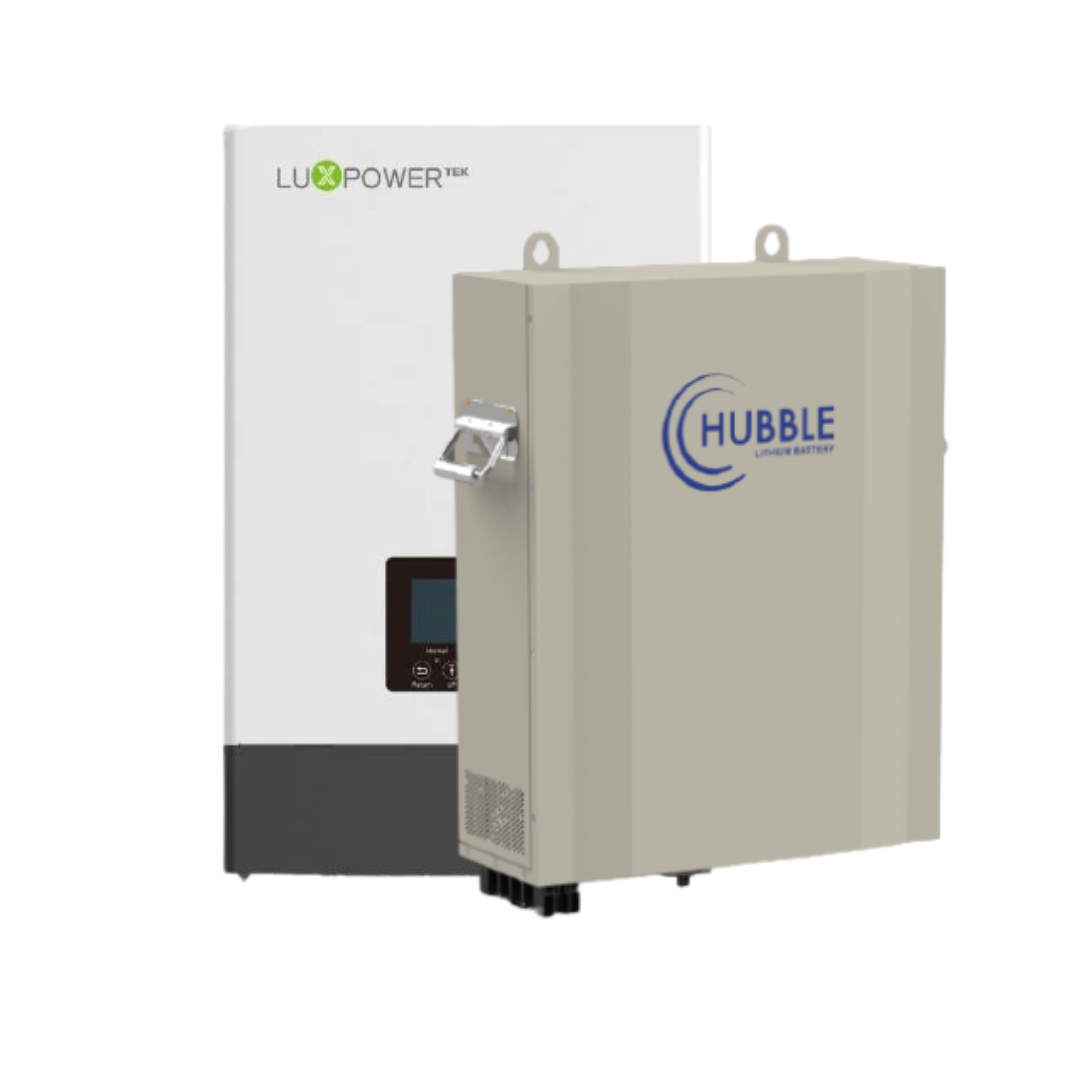

Make: LuxPower 5kw (Includes 1x Hubble Am2)

Rated power: 5000W/5000VA
Parallel Capacity: YES
Normal output voltage: 230/240,Split phase 220/110 Vac
Normal output frequency: 50/60Hz
Surge power: 10000VA
Switch time: 10ms
Wavefrom: Pure Sine Wave

Battery Data
Battery Type: Lithium/Lead-Acid
Normal Voltage: 51.2V/48V
Max Charge Voltage: 59V

Solar Charger Data
Max. PV Power: 6000W
MPPT Tracker: 2
Max Pv Open Circuit: 480Vdc
MPPT Voltage Range: 100-385Vdc

Ac Charger Data
Normal Voltage : 230Vac
AC Voltage Range: 110-280Vac
Max. Charge Current: 60A
Frequency Range50/60Hz(Auto Sensing)

Luxpower SNA 5kW : SNA SPECS SNA 3-6K Single phase

Battery
Model: Hubble Am-2
Rated Capacity (5HR):100Ah
Nominal Voltage: 51.0V
Discharge Cutoff Voltage: 42.0V
Equalized Charge Voltage: 54.0V
Max. Continuous Charging Current:100A
Max. Continuous Discharging Current:100A
C Rating: 1.0C
Weight: Approx. 42kg
Display: None

Hubble am2:Am2 spec

Benefits/Drawbacks

The system has a largish inverter(5kW)  and a decent battery capacity. The total expected operation of this system is 1.65kW per hour during load shed, anymore would not allow you to sustain a 3 hour load shed. You can of course easily add on an addition battery or 2 and get additional benefit. That said, you can power quite a bit with 1.65 kW hours.

Naturally during the course of the day when the solar panels are operational load shedding will be offset by their generation and of course the solar panels will recharge the batteries.

An additional benefit of the system is the inverter which as its own built in charger, thus the system is completely self sustaining and does not require management or user intervention.

Quality

The inverter is a hardy piece of equipment, this unit looks good and is extremely popular locally. Should there be any problem on the inverter it is locally supported. The battery is a decent quality lithium pack and is locally supported. The solar panels are Tier 1 with a 25 year linear output warranty.
