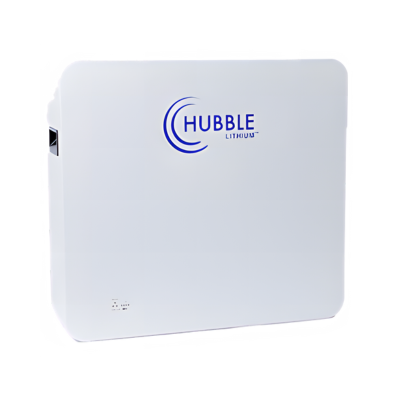

Hubble 10kWh 51.2v AM 10 Lithium Battery


Model: Hubble Am 10

Rated Capacity @ 10hr – 150Ah

Nominal Voltage: 51.2 V

Max Charging Current: 150A

Max Discharging Current: 150A


Product Features
  • Capable of paralleling up to 8 x units in a single string giving a total storage capacity of 80kWh.
  • 0.75C battery capable of providing a continuous charge/discharge power of 7.2kW.
  • Versatile compatibility with leading inverter brands such as Victron, Kodak and Sunsynk.
  • 10-year warranty, 15-year design life for the battery cells.
  • Installation flexibility – the battery can either be wall-mounted or rack mounted.
  • Heavy duty side handles for easy handling and mounting on the wall.
  • Delivers unlimited charge-discharge cycles within the warranty period.

General information:

Battery Type: LiFePO4 (Lithium Iron Phosphate)
Usable Capacity: 10kWh
Nominal Voltage: 51 VDC
Parallel: up to 8 units per string
Operating Voltage Range: 42 VDC – 54 VDC
Operating Temperature Range: -10°C –55°C
Cycle Life @ ≥6000 80% DOD
Dimensions (mm):673mm x 618mm x 193mm  (W x D x H)
Weight (kg): 89 kg
Warranty Period: 15 Years
Specification Sheet:AM-10 Flyer PRINT
Installation Manual:AM-10 Manual v1.0
