Description

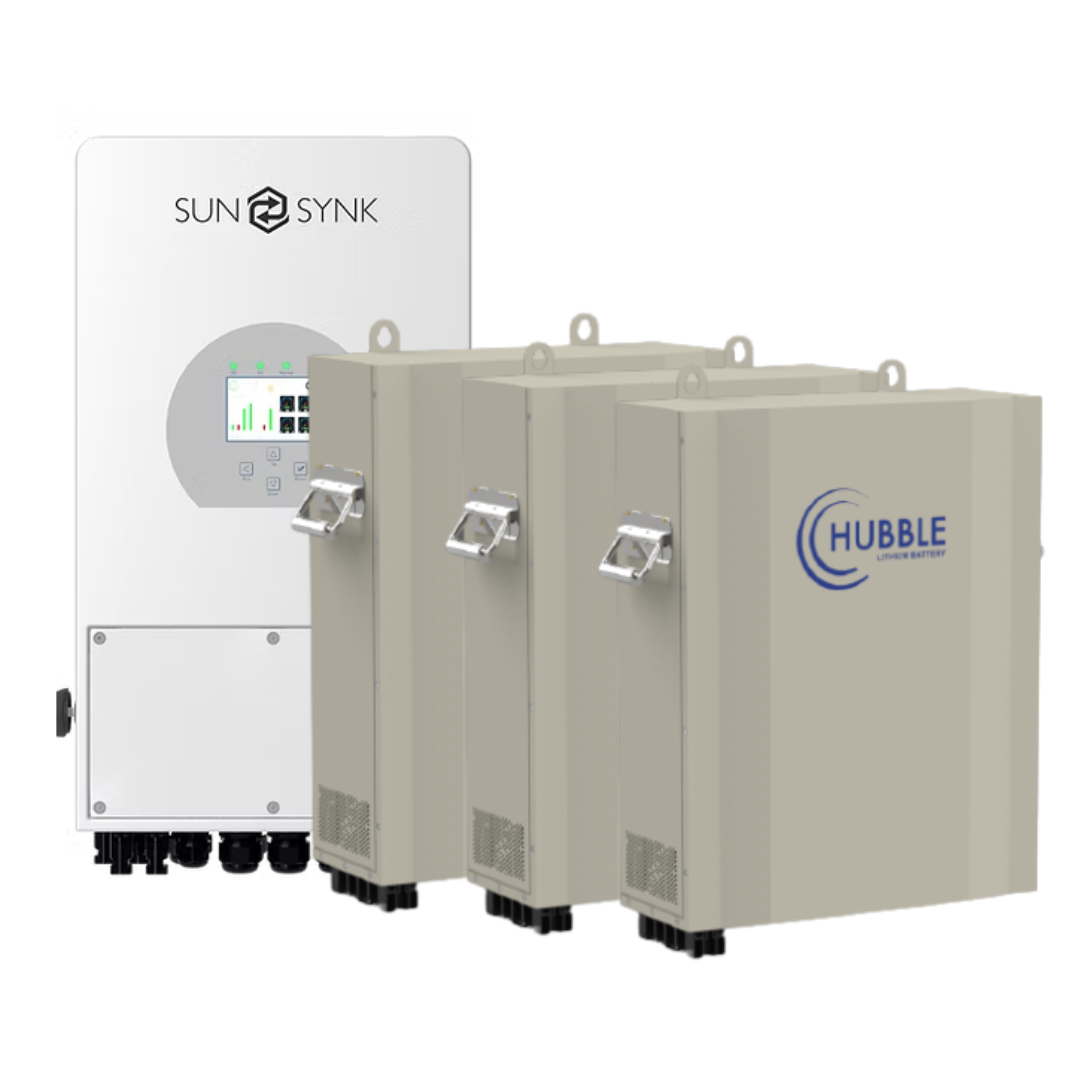

Make: Solar Kit II 3A- Sunsynk 16kW (Includes 3x Hubble Am2)
Inverter
Brand: Sunsynk 16KW Single Phase Max Hybrid Inverter
Battery Input Data
Battery Type: Lead-acid or Lithium-ion
Battery Voltage Range: 43~60V
Max. Charge Current: 300A
Max. Discharge Current: 300A
Charging Curve: 3 Stages/Equalisation
External Temperature Sensor: YesPV String Input Data
Max. DC Input Power: 18000W
Max PV Input Voltage: 450V
MPPT Range: 250V~450V
Start-up Voltage: 150V
PV Input Current: 22A + 22A + 22A
Max. PV Isc: 26A + 26A + 26A
No. of MPPT / Strings Per MPPT 3 / 2AC Output Data
Max. On-Grid AC Power 16000W
Max. Off-Grid AC Power 13000W
Battery Voltage Range: 43~60V
Max. Charge Current: 300A
Max. Discharge Current: 300A
Charging Curve: 3 Stages/Equalisation
External Temperature Sensor: YesPV String Input Data
Max. DC Input Power: 18000W
Max PV Input Voltage: 450V
MPPT Range: 250V~450V
Start-up Voltage: 150V
PV Input Current: 22A + 22A + 22A
Max. PV Isc: 26A + 26A + 26A
No. of MPPT / Strings Per MPPT 3 / 2AC Output Data
Max. On-Grid AC Power 16000W
Max. Off-Grid AC Power 13000W
Battery
Model: Hubble Am-2
Rated Capacity (5HR):100Ah
Nominal Voltage: 51.0V
Discharge Cutoff Voltage: 42.0V
Equalized Charge Voltage: 54.0V
Max. Continuous Charging Current:100A
Max. Continuous Discharging Current:100A
C Rating: 1.0C
Weight: Approx. 42kg
Display: None
Hubble am2:Am2 spec
