Description

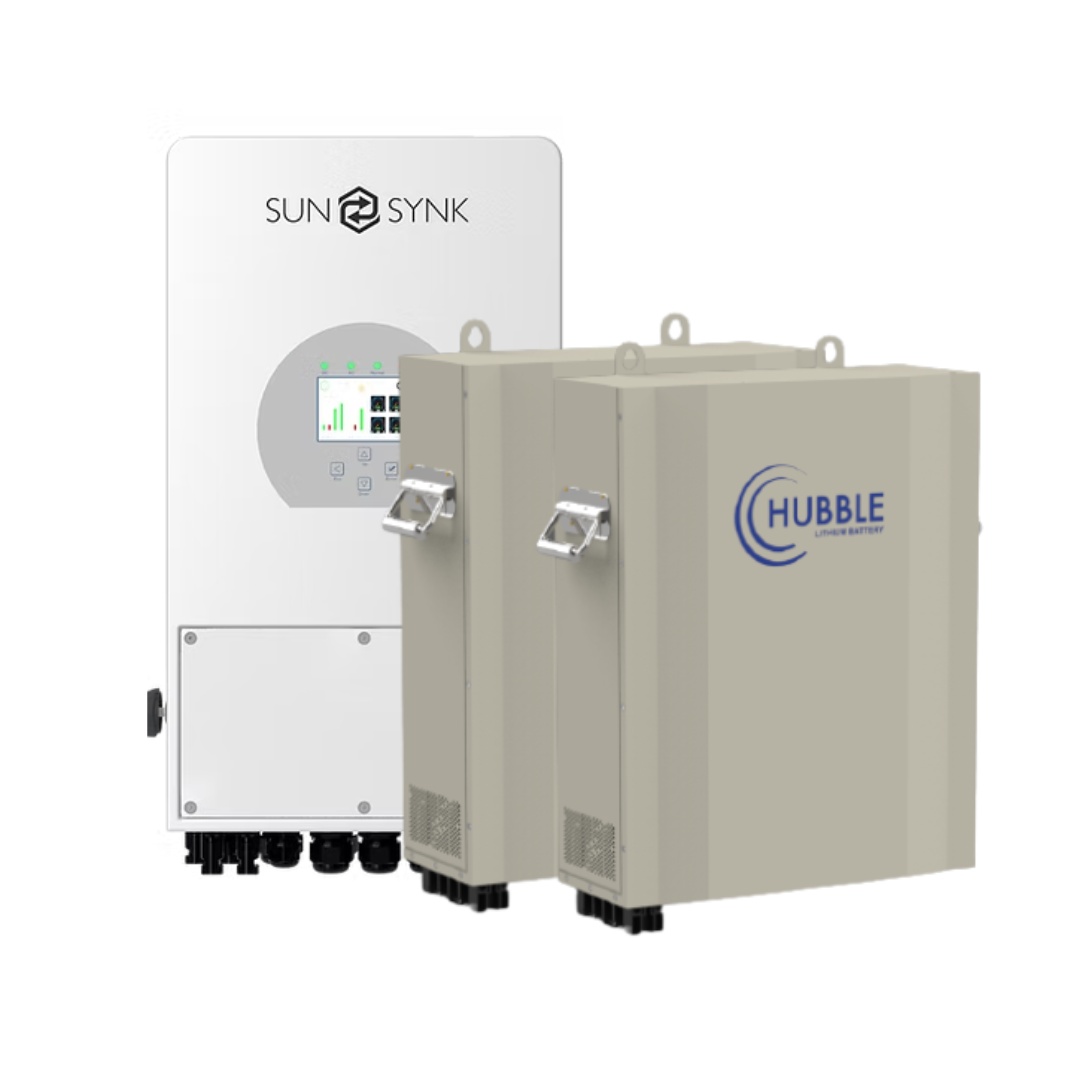

Make: Solar Kit II 3A- Sunsynk 12kW 3Phase (Includes 2x Hubble Am2)

Inverter

Make: Sunsynk 12kW 3 Phase

Utility-Interactive
Max. AC Output Power: 13200W
AC Output Rated Power: 12000W
AC Output Voltage: 3L/N/PE 220/380Va.c, 400Va.c
AC Output Frequency: 50/60Hz
AC Output Rated Current: 18.2Aa.c
Max. AC Output Current: 27.3Aa.c (max.)

Charge Mode
Battery Voltage: 48Vd.c (40Vd.c ~ 60Vd.c)
Battery Current: 240Ad.c (max.)
AC Input Voltage: 3L/N/PE 220/380Va.c, 400Va.c
AC Input Frequency: 50/60Hz
AC Input Rated Current: 18.2Aa.c
Max. AC Input Current: 27.3Aa.c (max.)
Max. AC Input Power: 13200W
Max. Apparent Output Power: 13200VA
PV Input Voltage: 550Vd.c (160Vd.c ~ 800Vd.c)
MPPT Input Voltage: 200Vd.c ~ 650Vd.c
PV Input Current: 26Ad.c + 13Ad.c
Max. PV Input Power: 15600W
Max. PV Isc: 34Ad.c + 17Ad.c

Spec Sheet: Sunsynk_ThreePhaseHI_DataSheet_v15_English

Battery

Model: Hubble Am-2
Rated Capacity (5HR):100Ah
Nominal Voltage: 51.0V
Discharge Cutoff Voltage: 42.0V
Equalized Charge Voltage: 54.0V
Max. Continuous Charging Current:100A
Max. Continuous Discharging Current:100A
C Rating: 1.0C
Weight: Approx. 42kg
Display: None

Hubble am2:Am2 spec
