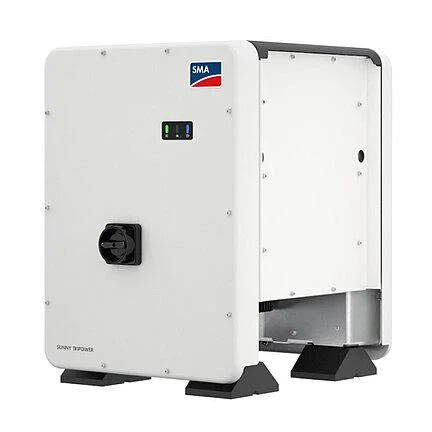

SUNNY TRIPOWER CORE 1 – THE WORLDS FIRST FREE STANDING INVERTER

The CORE1 is the third generation in the successful SMA Sunny Tripower family and is revolutionising the world of commercial inverters with its innovative design. SMA engineers have developed an inverter that combines a clever design with an innovative installation method to significantly reduce installation time and costs.

From delivery and installation to operation, the CORE1 delivers savings in logistics, labour and materials. View the CORE1 Brochure.

ONE OF A KIND
• Floor-mounted = 60% faster installation time with no wall brackets and hanging to consider.
• 6 x MPPT = Up to 12 strings of panels

COST EFFECTIVE
• Floor-mounted = Simple to install
• Integrated DC disconnector = No additional DC fuses required
• Reduction in labour costs and BOS costs

FAST INSTALLATION
• Integrated WiFi = Fast grid connection due to easy inverter configuration and commissioning via mobile APP
• 6 MPPT = No need for string combiner boxes and fuses

MAXIMUM YIELDS
• Up to 150% DC:AC ratio
• Six independent MPP trackers guarantee optimal energy production for every use, even in shading

INTELLIGENCE BUILT IN
• No LCD = Less components to fail
• Integrated Wi-Fi
• 12 direct string inputs
• AC/DC overvoltage protection (optional)

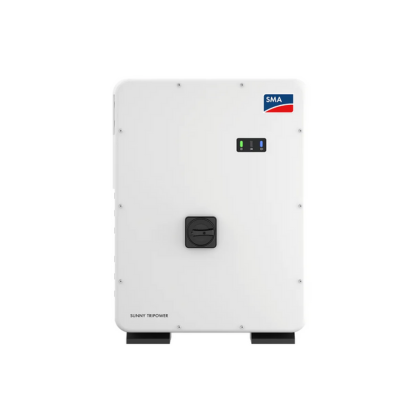

Spec Sheet: SMA CORE-1 STP 50-41 without Display_Datasheet_EN
