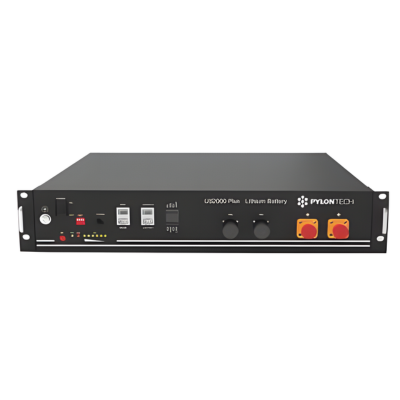

Pylon Tech – US2000C 2.4kWh/48V Li-Ion Battery ( excl. brackets )


The US2000C is an HESS solar battery system provided by Pylontech, developed with their own lithium iron phosphate cell to ensure the highest safety value and most promising life cycle.

The Pylontech US2000C has an incredible DoD of 95%

e Pylon US2000C for an additional 3 years of manufacturer warranty for free. Go to and complete the information in the ‘sign up battery’ page.

The US2000C can be used to expand an existing US2000 bank. Please note, the US2000C needs to be used as the master battery when used to expand an existing US2000 bank.



  • Vertical industry integration ensures more than 6000 cycles with 95% DoD.
  • Deliver up to 5kW* with single module (2.4kWh) – * please note this value is inverter/charger dependant, typically the maximum achieved value is 1.2kW per battery.
  • Modular design gives the end customers the flexibility to expand the storage capacity over time.
  • Backward compatibility with existing US series product
  • Compatible with most of the available Hybrid inverters.
  • Simple buckle fixing minimizes the installation time and cost.
  • Safety Cert.:  TÜV / CE / UN38.3 TLC.


  • The whole module is non-toxic, non-polluting and environmentally friendly. Perfect for residential applications
  • The cathode material is made from LiFePO4 with high safety performance the result of extremely stable chemistry, they won’t explode or catch fire. Perfect for residential applications
  • Battery management system (BMS) has protection functions including over-discharge, over-charge, over-current and high/low temperature.
  • The system can automatically manage charge and discharge state and balance current and voltage of each cell
  • Flexible configuration, multiple battery modules can be in parallel for expanding capacity and power.
  • Adopted self-cooling mode rapidly reduced system noise.
  • The module has low self-discharge, up to 6 months without charging, no memory effect, excellent performance of shallow charge and discharge.
  • Working temperature range is from -10℃ to 50℃, (Charging 0~50℃; discharging -10~50℃) with excellent discharge performance and cycle life.
  • Small size and lightweight


Supplier Part No:  US2000C
Weight: 24 kg
Dimensions (mm): 440x410x89/battery
Battery Type: Lithium Ion
Nominal Energy: 2400 W/h
Depth of discharge: 95.00 %
Voltage: 48 V
Maximum Charge Rate: 1200 W
Maximum Discharge Rate: 2400 W
Warranty: Standard 7-Year Product Warranty with optional 3-Year extension upon installation.

Note:  The Pylon range requires an additional cable pack. Please ensure you have purchased 1 x CAB-PK-PYLON per system.

Mounting Options:
BRACK-US2000B  2 x Brackets per additional battery for a stable base, and to allow easy stacking of multiple units.

Battery Cabinets:
BATTRACK-US2000X2  houses up to 2 x Pylon Tech US2000C Lithium-Ion batteries (Assembled dims: W 550mm X D 500mm X H 355mm)

Note:  Additional Pylon US2000B Battery cabinets for up to 5 x Pylon Tech US2000B Lithium batteries are also available, for future planning and expansion.
