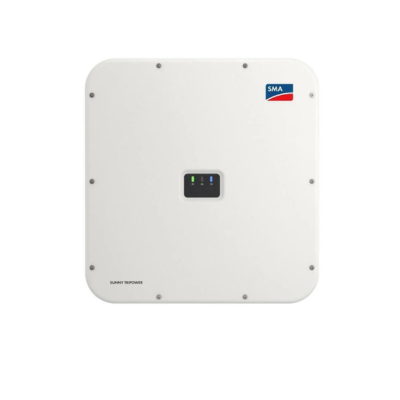

Make: SMA – Sunny Tripower 15 TL
Phase: Three Phase
Min Voltage/ Max Voltage: 240- 800VDC
Max DC Current:66A
The Sunny Tripower 15000TL-30 / 20000TL-30 / 25000TL-30 is the ideal inverter for large-scale commercial and industrial plants. Not only does it deliver extraordinary high yields with an efficiency of 98.4%, but it also offers enormous design flexibility and compatibility with many PV modules thanks to its multistring capabilities and wide input voltage range.
The future is now: the Sunny Tripower 15000TL / 20000TL / 25000TL comes with cutting-edge grid management functions such as
Integrated Plant Control, which allows the inverter to regulate reactive power at the point of common coupling. Separate controllers are no longer needed, lowering system costs. Another new feature – reactive power provision on demand (QonDemand24/7).
Maximum efficiency of 98.4 %
DC surge arrester (SPD type II) can be integrated
DC input voltage of up to 1,000 V
Multistring capability for optimum system design
Cutting-edge grid management functions with Integrated Plant Control
Reactive power available 24/7 (QonDemand24/7)
