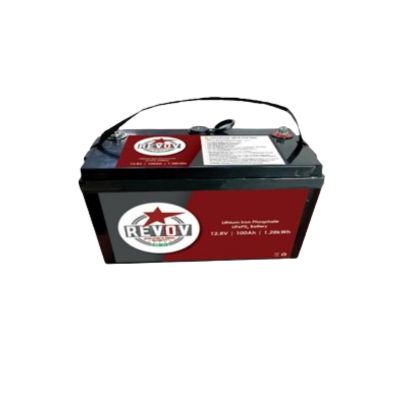

Revov – 100Ah 12.8V – 1.28kWh Lithium Battery


Revov – 100Ah 12.8V – 1.28kWh Lithium Battery

• Nominal Capacity (kWh): 1.28

• Rated capacity: 100AH



The 12.8V 100 Ah battery is (LiFePO4) chemistry and has an integrated battery management system making it the perfect portable power solution.
Lithium Iron Phosphate battery technology has greater energy density and lifecycle, it is a stable chemistry that maintains a high thermal runaway, resulting in a long life at low costs.

Ultra-safe Lithium Iron Phosphate (LiFePO4 ) technology.

  • Integrated battery management System (BMS).
  • Light weight & compact.
  • Water & dust resistant (IP56).
  • Highly durable ABS enclosure.
  • Drop-in lead acid replacement (with LI consideration) for static storage.
  • Internal BMS for self protecting and maintenance.
  • The battery can be connected in series.
  • Under and over voltage protection.
  • The Bluetooth app allows for the measurement of the battery’s Total Voltage, Remaining Voltage, Temperature and Time Left until fully Discharged

General Data
Nominal Capacity: 100Ah
Nominal Energy:  1280Wh
Nominal Voltage: 12.8V
End of Discharge Voltage: 11.5V
Standard Charge Voltage: 14.1±0.2V
Float Charge Voltage: 13.7V
Standard Charge Current: 20A
Operating Current: 0 – 100A
BMS peak Current: 150A,10Sec
Internal Resistance: 20m

Spec Sheet: 1 REVOV 12V_100Ah_SpecV5
