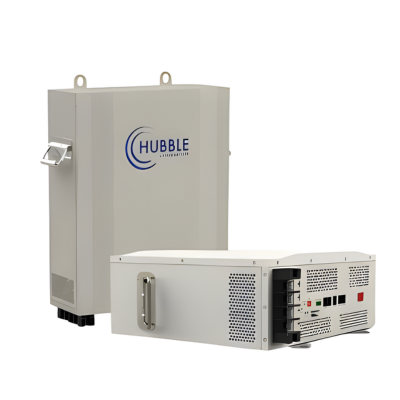

Hubble 2.75kWh 24v AM 4 Lithium Battery


Model: Hubble Am 4

Rated Capacity @ 100Ah

Nominal Voltage: 24 V

Max Charging Current: 100A

Max Discharging Current: 100A


Product Features
  •  Advanced BMS with current limiting function
    • CAN Bus, fully integrates and communicates with leading Inverter brands
    • Excellent high temperature performance
    • High Cycle Life and Service Life
    • RIOT integration ready for cloud monitoring
    • 1C High Performance Lithium battery
    • High Energy Density and conversion efficiency
    • Complete with integrated Battery Management System
    • Compatible with most Inverters and chargers
    • Low self discharge
    • Easy wall mount or shelf rack installation
    • Heavy duty side handles for easy handling and mounting on the wall
    • Built in protection for over-charge, over-discharge & over-temperature

General information:

Battery Type: LiFePO4 (Lithium Iron Phosphate)
Usable Capacity: 2750 Wh
Nominal Voltage: 24 VDC
Parallel: up to 15 units per string
Operating Voltage Range: 22 VDC – 29 VDC
Operating Temperature Range: -10°C +55°C
Cycle Life @ 100% DoD: >3000 cycles
Cycle Life @ 50% DoD: >6000 cycles
Dimensions (mm): 375mm x 147mm x 371mm (W x D x H)
Ports: 1x CAN-bus, 2x RS-485 Battery Link ports, 1x RS232
Weight (kg): 21 kg
Warranty Period: 10 Years
RIOT Cloudlink Ready: Yes
Specification Sheet: Hubble AM4 Spec Sheet
