Description

Make: Deye 50kW HV Hybrid

Ac Output Data
Rated AC Output and UPS Power (W): 50000
Max. AC Output Power (W): 55000
AC Output Rated Current (A): 75.8/72.5
Max. AC Current (A): 83.3
Max. Continuous AC Passthrough (A): 150
Peak Power (off grid): 1.5 time of rated power, 10 S
Generator input/Smart load: 75.8/150/75.8

PV String Input Data
Max. DC Input Power (W): 6500
Max. DC Input Voltage (V):1000
Start-up Voltage (V): 180
MPPT Range (V): 150~850
Full Load DC Voltage Range (V): 450~850
Rated DC Input Voltage (V): 600

Spec Sheet: Deye-50KW-Three-Phase-Hybrid-Inverter-Brochure

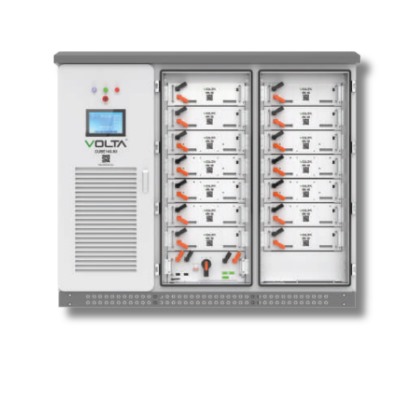

Make: Volta Cube 70KWh

Nominal Energy: 71KwH
Nominal Voltage: 716.8
Nominal Capacity:100AH
Cell Type: LFP
Standard Charge Voltage: 806.4V
Max Charge Current: 100A
Discharge Cut-Off Voltage:645V

Spec Sheet : Gwstore Volta Cube

Warranty

• 10 Year Warranty
