Description

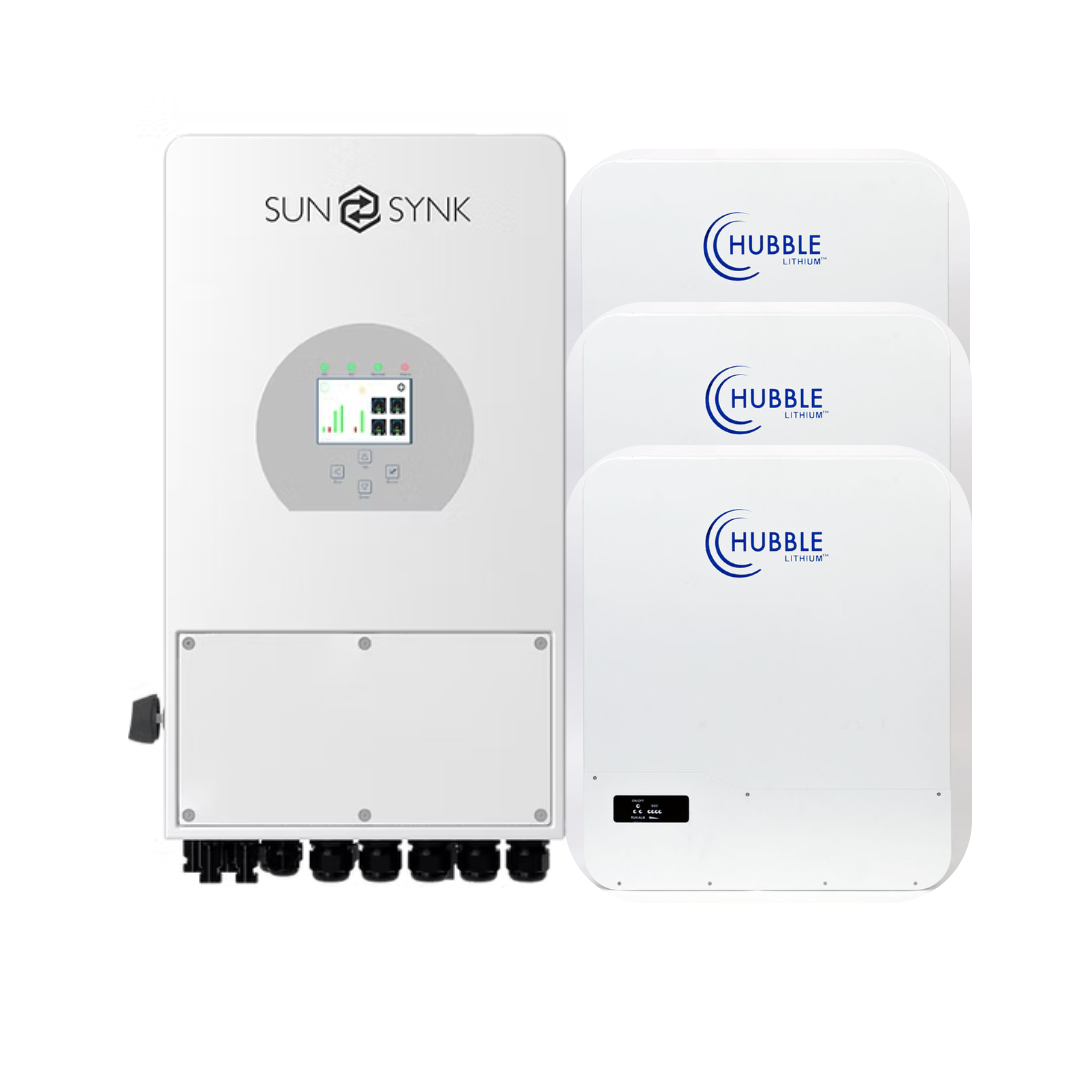

Make: Sunsynk 8kW Hybrid Inverter
AC Output Data
Rated AC Output: 8000W
Max. AC Power: 8800W
Peak Power (off-grid): 2 times of rated power, 10 S
AC Output Rated Current: 33.4A/35A
Max AC Output Current: 36.7A/38.5A
Max Continuous AC Passthrough: 50A
Output Frequency and Voltage: 50/60Hz; 120/240Vac
Grid Type: Split phase, 2/3 phase, single phase
Current Harmonic Distortion: THD<3% (Linear load<1.5%)
Pv String Input Data
Max. DC Input Power: 10400W
PV Input Voltage: 370V (100V~500V)
MPPT Range: 125~425V
Full Load DC Voltage Range: 240~425V
Start-up Voltage: 150V
PV Input Current: 22A+22A
No. of MPPT Trackers: 2
No. of Strings Per MPPT Tracker: 2+2
Battery Input Data
Battery Type: Lead-acid or Lithium-ion
Battery Voltage Range: 40~60V
Max. Charging Current: 190A
Max. Discharging Current: 190A
Charging Curve: 3 Stages/Equalisation
External Temperature Sensor: Optional
Charging Strategy for Li-Ion Battery: Self-Adaptation to BMS
Spec Sheet: Sunsynk Datasheet v5.0 (Standard Inverter)
Key features:
- Easy and simple to understand display
- Supporting Wi-Fi or GSM monitoring
- Visual power flow screen
- Smart settable 3-stage MPPT charging for optimized battery performance
- Auxiliary load function
- Parallel / multi invert function grid-tied and off-grid
Make: 3x Hubble AM5
Rated Capacity (5HR) 100 Ah
Nominal Voltage 51.2 V
Discharge Cutoff Voltage 5.12 KWH
Equalized Charge Voltage 55.2 V
Max. Continuous Charging Current 100 A
Max. Continuous Discharging Current 100 A
C Rating 1.0 C
Weight Approx. 51 Kg
Monitoring Optional Cloudlink
Spec Sheet: -datasheet_Hubble Am5
