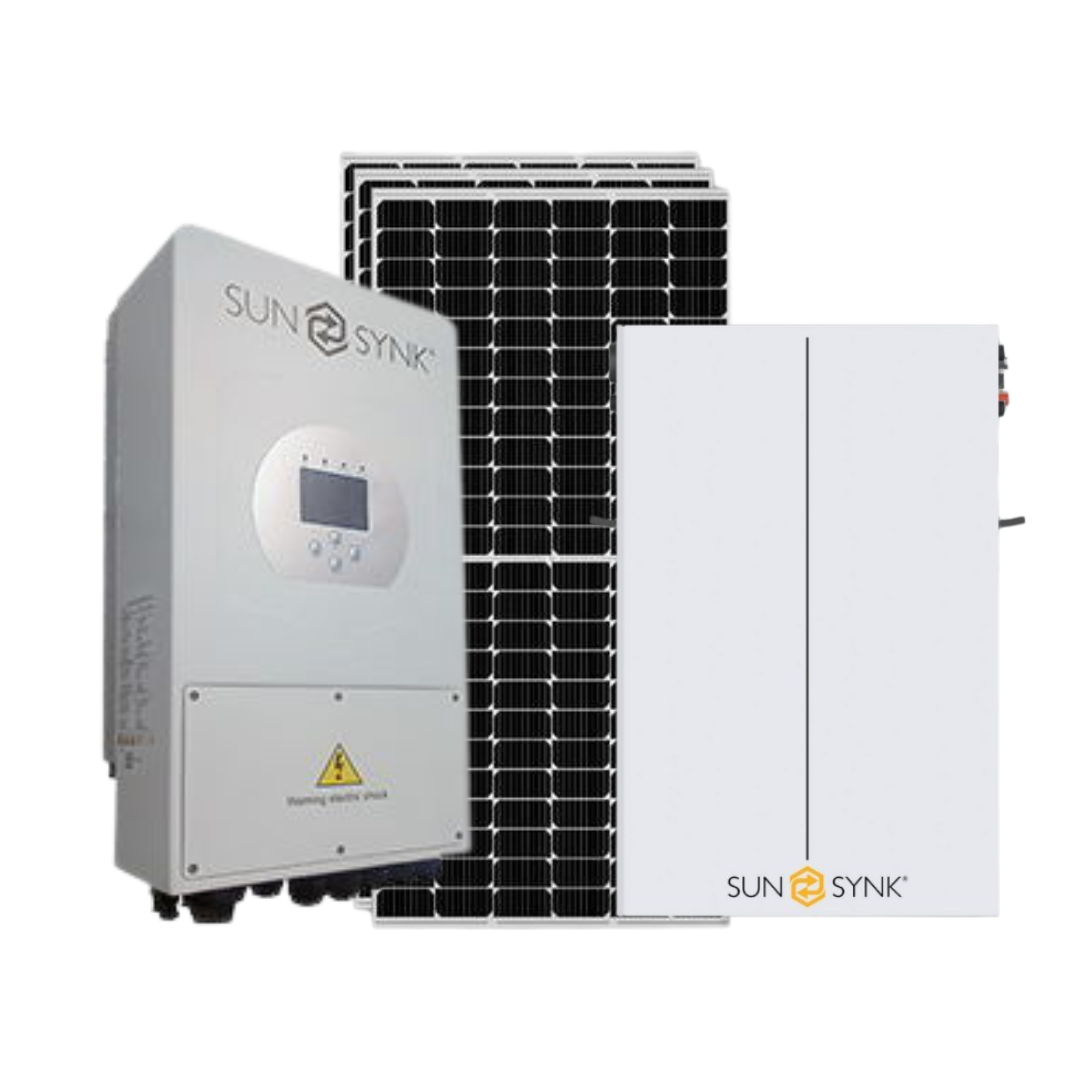

Sunsynk Kit - 12kW Hybrid 3Phase - 10.24kWh Lithium - 5.4kWp Solar - Fully Installed(Extended 10 year warranty)

Sunsynk Kit – 12kW Hybrid 3Phase – 10.24kWh Lithium – 5.4kWp Solar – Fully Installed(Extended 10 year warranty)

Original price was: R149,972.95.Current price is: R135,439.49.

Brand: Sunsynk
1x Sunsynk 12kw 3Phase
2x Sunsynk 5.12kWh
9x JA 620W Solar Panels

SKU: SS12-1 Category: Tags: , , ,
Sunsynk

Description

Make: Sunsynk 12kW 3 Phase

Utility-Interactive
Max. AC Output Power: 13200W
AC Output Rated Power: 12000W
AC Output Voltage: 3L/N/PE 220/380Va.c, 400Va.c
AC Output Frequency: 50/60Hz
AC Output Rated Current: 18.2Aa.c
Max. AC Output Current: 27.3Aa.c (max.)

Charge Mode
Battery Voltage: 48Vd.c (40Vd.c ~ 60Vd.c)
Battery Current: 240Ad.c (max.)
AC Input Voltage: 3L/N/PE 220/380Va.c, 400Va.c
AC Input Frequency: 50/60Hz
AC Input Rated Current: 18.2Aa.c
Max. AC Input Current: 27.3Aa.c (max.)
Max. AC Input Power: 13200W
Max. Apparent Output Power: 13200VA
PV Input Voltage: 550Vd.c (160Vd.c ~ 800Vd.c)
MPPT Input Voltage: 200Vd.c ~ 650Vd.c
PV Input Current: 26Ad.c + 13Ad.c
Max. PV Input Power: 15600W
Max. PV Isc: 34Ad.c + 17Ad.c

Spec Sheet: Sunsynk_ThreePhaseHI_DataSheet_v15_English

Battery Storage

Battery Chemistry LiFePO4
Nominal Energy: 5.12kWh
Nominal Capacity: 100Ah
Rated Voltage: 51.2Vdc
Operating Voltage Range: 43.2Vdc~57.6Vdc
Max. Charge/Discharge Current: 50A/100A
Scalability: ≤3, (Max. 8 in Parallel

Spec Sheet:Sunsynk_X5.12_Datasheet_v6_English

Solar Input

Rated Maximum Power: 620w
Open Circuit Voltage: 48.50
Maximum power Voltage: 40.21
Short circuit: 16.13
Maximum Power Current: 15.42
Module efficiency: 23.0
Power Tolerance: 0~+3%

Number of Units: 9

Data Sheet: Datasheet_-_Ja_Solar_JAM72D40_575-600_LB_(EN)_(2)[1]

Balance of System

1 x Keto 250Amp Battery Disconnect Fuse Breaker

1 x 100m x 6mm SGN Solar Cable Red

1 x 100m x 6mm SGN Solar Cable Black

1 x 100m x 6mm Earth Cable

1 x Set Renusol Roof Mounts (Angle mounts or genuis flashing slate covers not included)

1 x Solar Input Protection Protection Box 1 string in and 1 out

1 x AC Protection Box – Surge Arrestor/2 x 63Amp Breakers/63Amp Changeover

2 x Pairs MC4 connectors

Full Installation Notes

  • Installation offering for JHB, Port Elizabeth, Alexandria, Cape Town, Pretoria, Durban, Pietermaritzburg and within 100kms of those main centers.
  • No extreme angle roof types (>30 degrees) and no slate roof types that may require slate kits.
  • Extra will have to be charged if panel lifts are required or ladder rental for very high roofs.
  • Offer assumes that installation point is within 20M from mains db board.
  • Mains DB must have an existing Certificate of Compliance, extra will have to be charged if a COC needs to be done.
