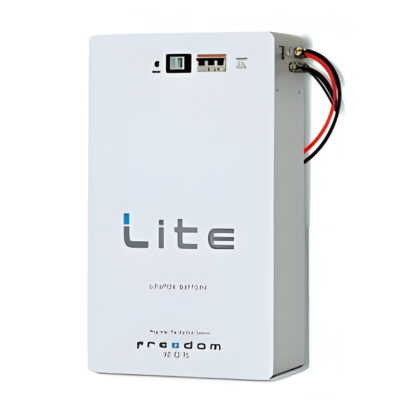

Freedom Won Lite Commercial 400/320 HV Battery


Model: Commercial 400/320 HV Battery/ Lithium Battery

Current Capacity: 800 (600)

Nominal Voltage: 512V (682)

Max Current Charging: 800Ah

Max Discharging Current:  600Ah


This Freedom Won Lite Commercial HV LiFePO4 battery is the perfect high quality battery for all your large commercial and industrial solar solutions. The range is from 100KWh to 700KWh batteries.
Product Features:
  • Large Commercial Storage solution in single deployment
  • 10 year Local manufacturer’s warranty

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards.

General information:
Battery Type: Lithium Ion
Charge Power: 400Kw
Nominal Voltage: 512V (682)
Depth of discharge: 90.00 %
Discharge Rate: 400000 W
Maximum Discharge Rate: 400000 W
Cycle Life @ 80% DoD and Max 90% DoD: >5500 cycles
Dimensions (mm): 2100 x 3200 x 750mm (H x W x D)
Weight (kg): 4300 kg
Warranty Period: 10 Years
Service Period: 16 Years (5 500 cycles) expected life at 80% DoD, 20 years (7 500 cycles) at 50% DoD.

Additional information


High Voltage


Freedom Won
