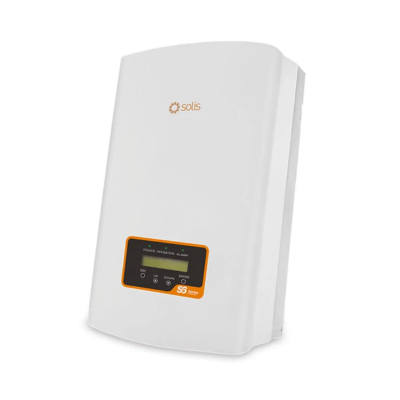

Solis 20kW 4G 3 Phase Dual MPPT – DC


Supplier Part No:3P4G-20K-DC
Weight:22 kg
Rated Power:20,000 W
Min PPT Voltage:160 V
Max PPT Voltage:850 V
DC Startup Voltage:180 V
DC Shutdown Voltage:1,000 V
Max Input Voltage:1,000 V
Max DC Power:24,000 W
Max AC Power:22,000 W
Max DC Current:44 A
Max DC Inputs:4
Has DC Fuses:0
Connector:MC4 Compatible
Included Connectors:8
Euro Efficiency:98.1 %
MPPT Trackers:2
Has Integrated DC Switch:Yes
Warranty:5 years


Solis 4G 3 phase range of Inverters – smaller, lighter, easier to install

Ultra low Startup Voltage – 180V

160-850V MPPT input voltage range- ultra low start-up
Over 97.8% Euro efficiency
Dual MPPT design with precise MPPT algorithm
IP65 rated for external installation
RS485 built in /WiFi (optional)/GPRS (optional) interface
WiFi monitoring available—iphone and android app available
Multiple protection levels
5 years standard warranty 20 years optional upgrade

NOTE: for SA customers, warranty extension is currently available for up to 10 years only
