Description

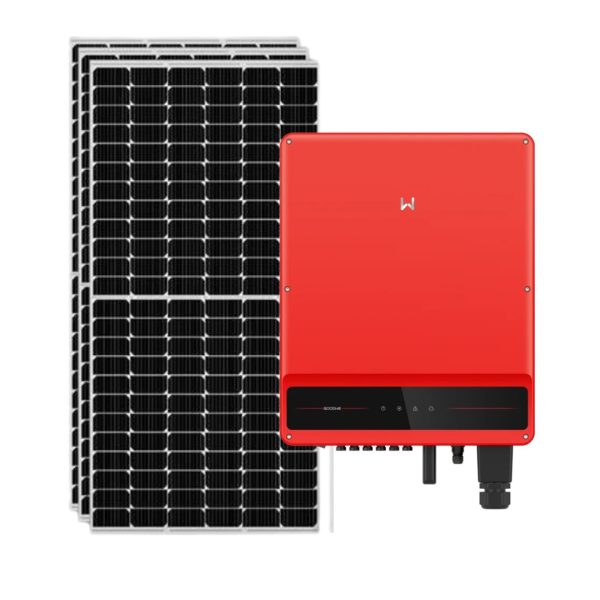

Make: Solar Kit 6 – 36kW Grid Tied System
Inverter
Input
Max. Input Voltage (V): 1100
MPPT Operating Voltage Range (V): 200 ~ 950
Start-up Voltage (V) 180
Nominal Input Voltage (V) 600
Max. Input Current per MPPT (A) 30
Max. Short Circuit Current per MPPT (A) 37.5
Number of MPP Trackers: 3
Number of Strings per MPPT: 2
Output
Nominal Output Power (W) 36000
Nominal Output Apparent Power (VA) 36000
Max. AC Active Power (W) 36000
Max. AC Apparent Power (VA) 36000
Nominal Output Voltage (V) 400*4, 3L / N / PE or 3L / PE
Nominal AC Grid Frequency (Hz) 50 / 60
Max. Output Current (A) 53.3
Power Factor ~1 (Adjustable from 0.8 leading to 0.8 lagging)
Max. Total Harmonic Distortion <3% <3% <3%
Efficiency
Max. Efficiency: 98.8%
European Efficiency: 98.5%
Protection
PV String Current Monitoring: Yes
PV Insulation Resistance Detection: Yes
Residual Current Monitoring: Yes
PV Reverse Polarity Protection: Yes
Spec Sheets:
Solar Panels
54x JA Solar 550W Mono PERC Half-Cell MBB MC4 with 30mm frame thickness (Interchangeable with Longi /Canadian/Jinko)
Spec Sheets:
Balance of System
1 x 1000V Protection Box 6 Inputs 6 Outputs 16A Isolator Type II SPD
1 x Goodwe SEC1000
1 x Set Renusol Aluminum Roof Mounts (Angles not included)
1 x Set MC4 Connectors (12 x Male/Female Pairs)
3 x 100m x 6mm Solar Cable Red
3 x 100m x 6mm Solar Cable Black
2x 100m x 6mm Earth Cable
System Performance
Solar Deployed: 29.7kWp
Expected Daily Generation: 107.9kWh @ 5.5 hours
