Description

Shoto is a leading manufacturer of green energy storage solutions. Since its founding in 1990, Shoto
has built solid expertise in the field of energy storage and has become a convinced supporter of
green energy. Shoto has successfully expanded its solutions for telecoms, data centers, energy storage systems and renewable energies worldwide with branches in all continents and more than 100million satisfied customers.

As one of the world’s largest manufacturers of lead-acid batteries and lithium, Shoto has more than 30 years of experience and is one of the “China Top 100 Electronic Information Enterprises” and one of the “World Top 500 New” Energy Companies. SHOTO offers the highest safety and performance standards for battery solutions for private households and commercial purposes.

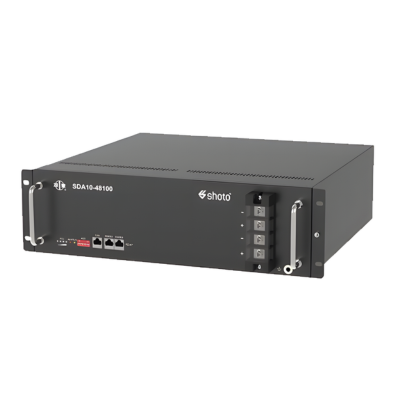

Shoto 5.12kwh Lithium-Ion Battery with more than 5000 cycles with 90% DOD and 10+ years design life. Rack Mounted structure design reduces installation
time and cost.

General Data
• Model: 51.2-100 16Cell
• Nominal Capacity (kWh): 5.12
• Rated capacity: 100AH
• Operating voltage range: 42V to 57.6V
• Boost Charge / Float Charge Voltage: 57.6V / 54V
• Depth of Charge: 90%
• Usable Capacity (kWh): 4.6
• Charge Voltage: 57.6V
• Discharge Voltage: 48V
• Nominal Voltage: 51.2V
• Maximum Parallel Units: 16
• Communication Port: RS485 & CANBUS
• Cycle Life: ≥5000 @ 25°C
• Humidity: 5%-95%
• Altitude: ≤ 4000m
• Certificate: TUV(IEC 62619)/CE-EMC/UN38.3
• Installation Method: Rack Mount / Wall Mount
• Terminal Stud: M8

Charge / Discharge Current
• Max 100A (1C)
• Recommended 50A (0.5C)

Rated Operating Temperature
• Charge -5°C to +45°C
• Discharge -20°C to +50°C

Recommended Operating Temperature
• Charge +15°C to 35°C
• Discharge +15°C to +35°C
• Storage -20°C to +35°C

Spec Sheet: Shoto-51.2V16cell-51.2-100-100AH-5.12KWH
