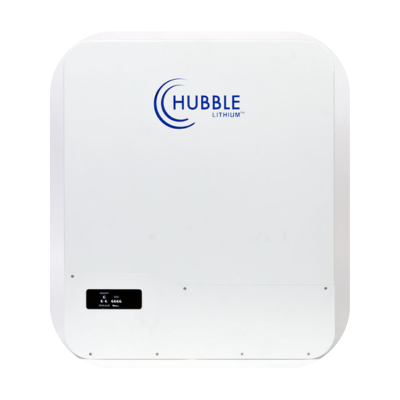

Hubble 5.12kWh 48v AM 5 Lithium Battery


Model: Hubble Am 5

Rated Capacity @ 5hr – 110Ah

Nominal Voltage: 51.2 V

Max Charging Current: 100A

Max Discharging Current: 100A


Product Features

• Low self discharge
• High cycle and service Life
• 1C High performance lithium battery
• Easy wall mount or shelf rack installation
• Excellent high temperature performance
• Advanced BMS with current limiting function
• Compatible with most inverters and chargers
• High energy density and conversion efficiency
• Complete with integrated Battery Management System
• Hubble Cloudlink integration ready for cloud monitoring
• Heavy duty side handles for easy handling and mounting on the wall
• Built in protection for over-charge, over-discharge & over-temperature
• CAN Bus, fully integrates and communicates with leading Inverter brands

General information:

Battery Type: LiFePO4 (Lithium Iron Phosphate)
Usable Capacity: 5.12kWh
Nominal Voltage: 51 VDC
Parallel: up to 8 units per string
Operating Voltage Range: 42 VDC – 54 VDC
Operating Temperature Range: -10°C –55°C
Cycle Life @ ≥6000 80% DOD
Dimensions (mm): 509.62mm x 173mm x 599.67mm (W x D x H)
Weight (kg): 51 kg
Warranty Period: 10 Years
Specification Sheet:AM-5 Flyer
Installation Manual:AM-5 Manual v1.0

Additional information
