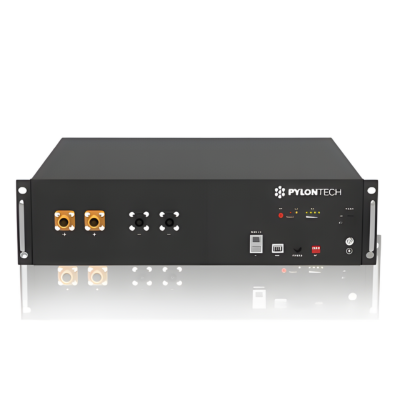

Pylon US2500 CAN – Voltage 24V

Nominal Wh 2840

6000 Cycles at 80%

The solar battery is ONLY Compatible with 24V Voltronic inverters

Comes with CAN communication.

RS485 communication supports Voltronic 24V inverter

CAN  communication supports Victron 24V inverter

Supports maximum 20 pcs in parallel connection

Key battery parameters setting:

• Charging cut off voltage point: 28.4VDC
• Discharging cut off voltage point: 24.8VDC
• Recommend charge/discharge current = 55A * N  (N=Number of parallel batteries)
• Other settings are basically same as the 48V system

Download Spec Sheet: UP2500 with CAN
