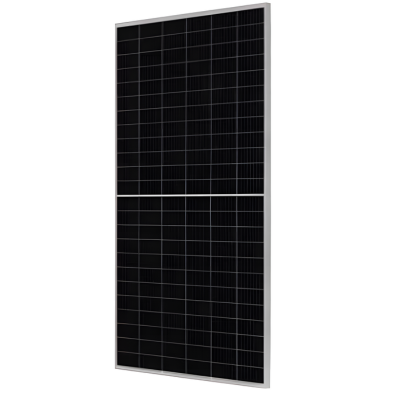

Make: JA Solar – 560W Mono PERC Half-Cell MBB LR MC4
Rated power: 560W
Weight: 28 kg
Length: 2,333 mm
Width: 1,134 mm
Depth: 30 mm
IMP: 13.50
VMP: 39.26V
Isc: 11.40 A
Voc: 49.59 V
Temp. Coefficient (Mpp): -0.35 %
Clamp position on panel: Long side only
Connector Type: MC4
Efficiency: 21.4 %
Pallet Size: Oversized
Spec Sheet : JA 560W mono spec
Key features:
- Higher output power
- Lower LCOE
- Better mechanical loading tolerance
- Less shading and lower resistive loss
Comprehensive Certificates:
- IEC 61215, IEC 61730
- ISO 9001: 2015 Quality management system
- ISO 14001: 2015 Environmental
- ISO 45001: 2018 Occupational health and safely
Superior Warranty:
- 12-year product warranty
- 25-year linear power output warranty
