Description

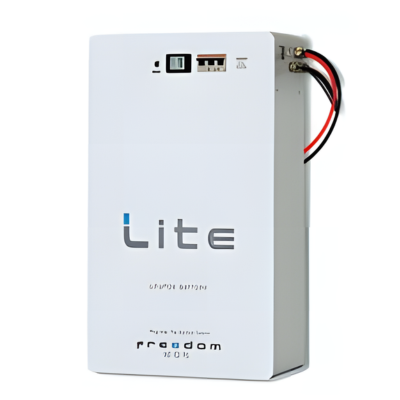

Make: Freedom Won Lite Commercial 300/240 HV Battery
Total Energy Capacity [kWh]: 300
Energy, 80% DoD [kWh]: 240
Energy, 90% DoD [kWh]: 270
Current Capacity [Ah]: 400
Max/Cont. Charge and Discharge Current [A]: 400/400
Max/Cont. Charge and Discharge Power [kW]: 300/300
Nominal Voltage [V]: 736
Max/Min. Operating Voltage [V]: 817/655
Max Recommended Inverter Total Rated Power (cont.) [kVA]: 300
Short Circuit Current [kA]: 10
Battery Dimensions – H x W x D [mm]: 1460x2410x730
Crated Dimensions – H x W x D [mm]: 1575x2645x815
Download Data Sheet Freedom Won Lite Commercial 300/240 HV Battery
Key features:
- CAN Bus for diagnostics & troubleshooting. RJ45 Strictly for BMS & inverter communication.
- 3mm thick Aluminium, powder coated, tamper proof, indoor use, rated to IP20
- On and Off buttons, State of Charge display (0 to 100%), Error light, Error Reset button, USB plug for programming and data access with PC, main breaker
- Full battery management system and internal trip protection
- Forced air cooling
Superior Warranty:
- 10-year product warranty
