Description

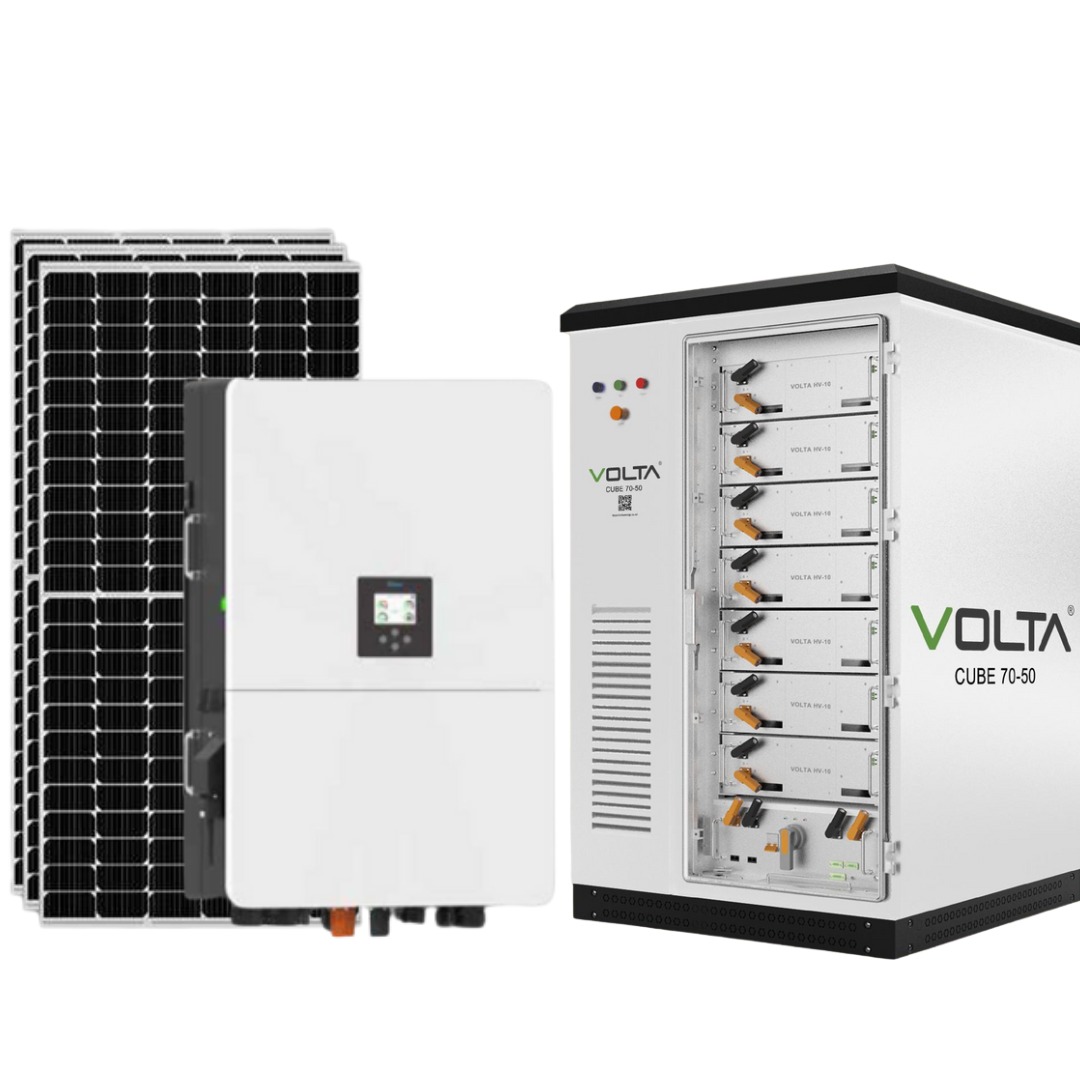

Make: Deye 80kW HV Hybrid – Volta Cube 140kWh HV Battery

Battery Type
Battery Voltage Range (V): Li-Ion
Max. Charging Current (A): 160~800
Max. Discharging Current (A): 50+50
Number of battery input:2

PV String Input Data
Max. DC Input Power (W): 128000
Max. DC Input Voltage (V): 1000
Start-up Voltage (V): 180
MPPT Range (V): 150-850

AC Output Data
Rated AC Output a(W):80000
Max. AC Input/Output Apparent Power (V) : 88000
AC Output Rated Current (A): 133.4/127.6
Max. AC Current (A):200
Max. Continuous AC Passthrough (A): 150

Spec Sheet: Deye 80kw Spec Sheet

Battery Storage

Nominal Energy:122.8KWH
Nominal Voltage: 614V
Nominal Capacity: 200ah
Cell Type: LFP
Standard Charge Voltage: 200A
Max Charge Current: 237V
Discharge Cut-Off Voltage: 200A

Spec Sheet : Gwstore Volta Cube

Solar Array

Nominal Max. Power(Pmax): 615W
Opt. Operating Voltage(Vmp): 41.0V
Opt. Operating Current(Imp): 15.01A
Open Circuit Voltage(Voc): 48.2V
Short Circuit Current(Isc): 16.02A
Module Efficiency: 22.8%

Spec Sheet :
Canadian Solar CS6.2-66TB-615 Datasheet EN
