Description

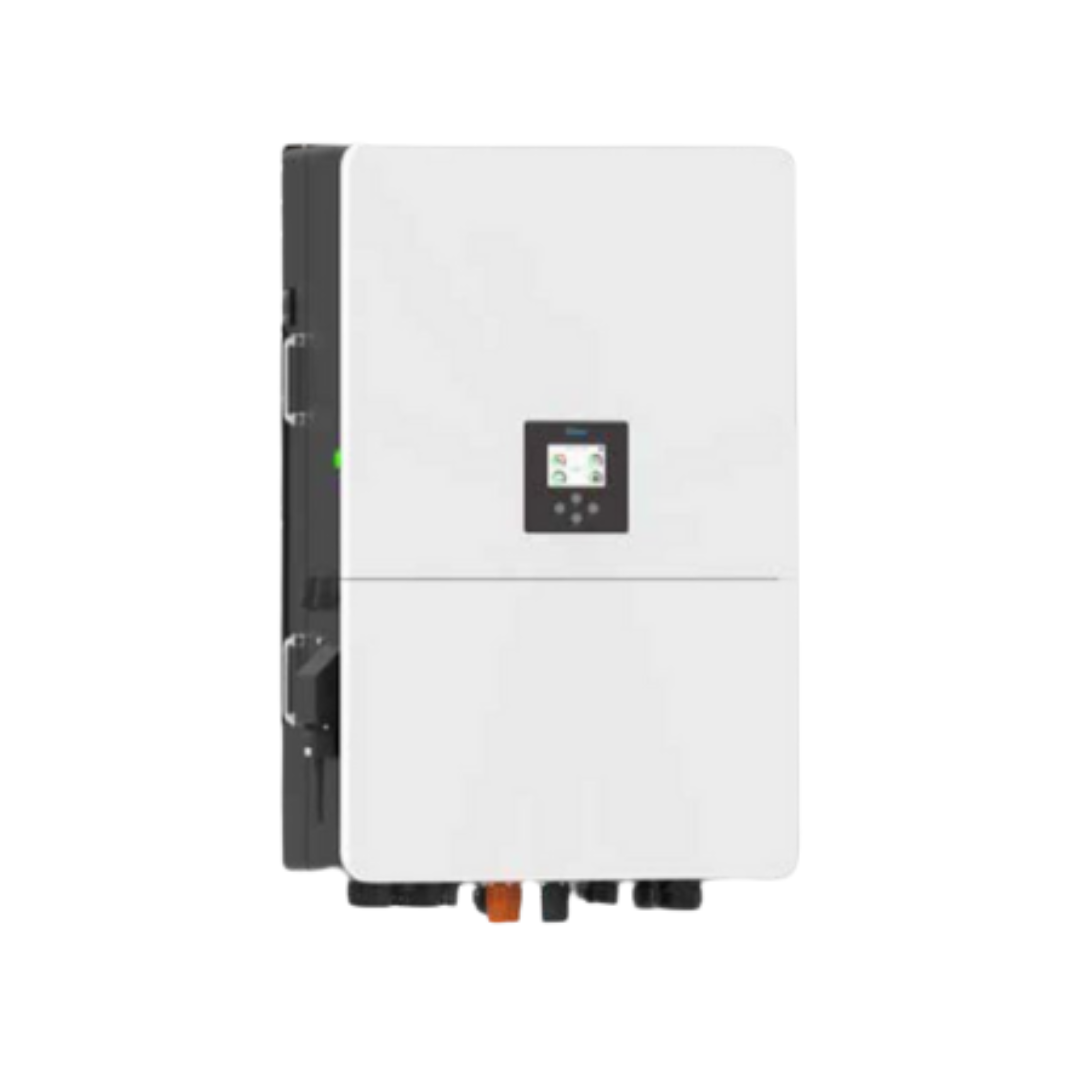

Make: Deye 80kW High Voltage
Inverter
Battery Input Date
Battery Type: Lithium-Ion
Battery Voltage Range (V): 160-1000
Max. Charging Current (A):80+80
Max. Discharging Current (A): 80+80
Charging Strategy for Li-ion Battery: Self-adaption to BMS
Number of Battery Input: 2
PV String Input Data
Max. PV Access Power(W): 160000
Max. PV Input Power (W): 128000
Max. PV Input Voltage (V): 1000
Start-up Voltage (V): 180
MPPT Voltage Range (V): 150-850
Rated PV Input Voltage (V): 650
AC Output Data
Rated AC Input/Output Active Power (W): 8000
Max. AC Input/Output Apparent Power (VA): 88000
Rated AC Input/Output Current (A): 121.3/115.9
Max. AC Input/Output Current (A): 133.4/127.6
Peak Power (off-grid) (W): 1.5 times of rated power
Power Factor Adjustment Range: 0.8 leading to 0.8lagging
Key features:
- Max. charging/discharging current of 160A
- Support storing energy from diesel generator
- Max. 10 pcs parallel for on-grid and off-grid
operation; Support multiple batteries parallel - AC couple to retrofit existing solar system
- 6 time periods for battery charging/discharging
- High voltage battery, higher efficiency
Spec Sheet:Deye 80kw Spec sheet
