Description

Make: Deye 50kW HV Hybrid – Volta Cube 140kWh HV Battery

Battery Type
Battery Voltage Range (V): Li-Ion
Max. Charging Current (A): 160~800
Max. Discharging Current (A): 50+50
Number of battery input:2

PV String Input Data
Max. DC Input Power (W): 65000
Max. DC Input Voltage (V): 1000
Start-up Voltage (V): 180
MPPT Range (V): 150-850

AC Output Data
Rated AC Output and UPS Power (W):5000
Max. AC Output Power (W): 55000
AC Output Rated Current (A): 75.8/72.5
Max. AC Current (A):83
Max. Continuous AC Passthrough (A): 150

Spec Sheet: Deye-50KW-Three-Phase-Hybrid-Inverter-Brochure

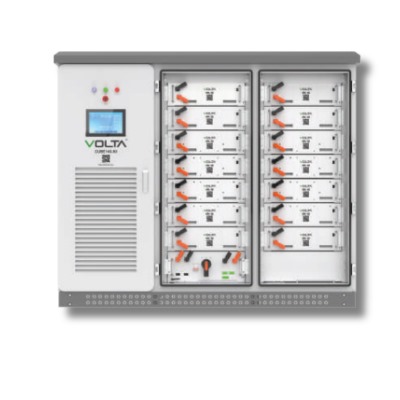

Battery Storage

Nominal Energy:122.8KWH
Nominal Voltage: 614V
Nominal Capacity: 200ah
Cell Type: LFP
Standard Charge Voltage: 200A
Max Charge Current: 237V
Discharge Cut-Off Voltage: 200A

Spec Sheet : Gwstore Volta Cube
