Description

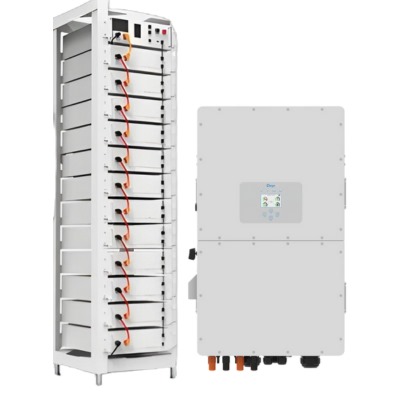

Make: Deye 50kW HV Hybrid – Deye 61.44kWh HV Battery
Rated AC Output and UPS Power: 50000w
Max. AC Output Power: 55000w
AC Output Rated Current (A): 75.8/72.5
Max. AC Current: 83.3
Max. Continuous AC Passthrough: 150
Peak Power (off grid): 1.5 time of rated power, 10s
Generator input/Smart load: 75.8 / 150 / 75.8
Power Factor: 0.8 leading to 0.8 lagging
Grid Type: 3 Phase
Spec Sheet: Deye-50KW-Three-Phase-Hybrid-Inverter-Brochure
Key features:
- Easy and straightforward to understand LCD display
- Supporting Wi-Fi or GSM monitoring
- Visual power flow screen
- 4 MPPT inputs and 2 strings per input
- Auxiliary load function
- Multi-inverter function: grid-tied and off-grid
- Compatible with mains electrical grid voltages or power generators
- Compatible with wind turbines
- 230V/400V Three-phase Pure Sinewave Inverter
- It can power up both single-phase and 3-phase loads
- Self-consumption and feed-in to the grid
- Auto restart while AC is recovering
- Maximum charging/discharging current of 50A + 50A
- DC and AC coupled to retrofit existing solar system
Make: Deye 61.44kWh HV Battery
Cell Chemistry: LiFePO4
Module Energy(kWh)
Module Nominal Voltage (V)
Module Capacity(Ah)
System Nominal Voltage: 614.4V
System Operating Voltage: 499.2~700V
System Energy: 61.44 kWh
System Usable Energy: 55.29kWh
Module Energy(kWh)
Module Nominal Voltage (V)
Module Capacity(Ah)
System Nominal Voltage: 614.4V
System Operating Voltage: 499.2~700V
System Energy: 61.44 kWh
System Usable Energy: 55.29kWh
Spec Sheet: Deye Battery HV – Datasheet[1]
Key features:
- Quick installation standard of 19-inch embedded designed module is comfortable for installation and maintenance.
- Cathode material is made from LiFePO4 with safety performance and long cycle life. The module has less self-discharge, up to 6 months without charging it on shelf, no memory effect, excellent performance of shallow charge and discharge.
- It has protection functions including over-discharge, over-charge, over-current and over-high or low temperature. The system can automatically manage charge and discharge state and balance current and voltage of each cell.
Superior Warranty:
- 10-year product warranty
