Description

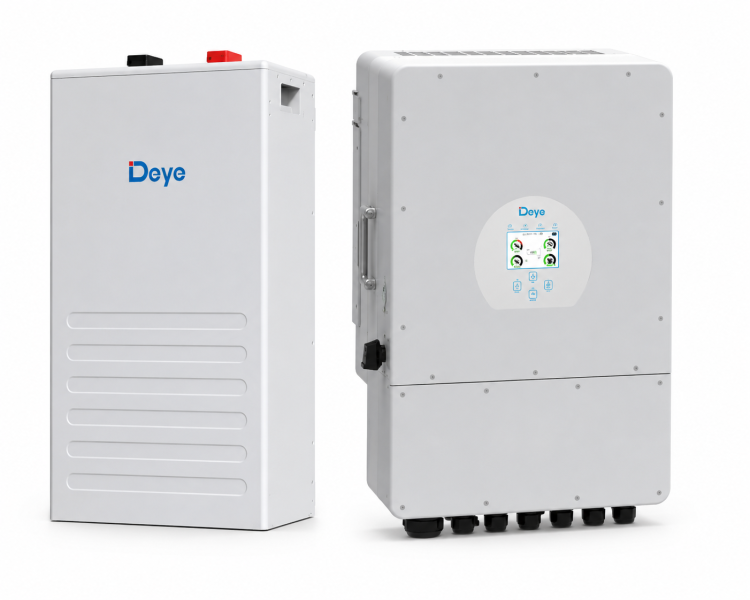

Make: Solar Kit – Deye 16kW + Deye 16kw Battey
Inverter
Brand: Deye 16KW Single Phase Max Hybrid Inverter
Battery Input Data
Battery Type: Lead-acid or Lithium-ion
Battery Voltage Range: 43~60V
Max. Charge Current: 300A
Max. Discharge Current: 300A
Charging Curve: 3 Stages/Equalisation
External Temperature Sensor: Yes
Max. DC Input Power: 18000W
Max PV Input Voltage: 450V
MPPT Range: 250V~450V
Start-up Voltage: 150V
PV Input Current: 22A + 22A + 22A
Max. PV Isc: 26A + 26A + 26A
No. of MPPT / Strings Per MPPT 3 / 2
Max. On-Grid AC Power 16000W
Max. Off-Grid AC Power 13000W
Battery
Brand: Deye
Battery Chemsitry : LiFePO4
Total Energy :16kWh
Nominal Voltage : 51.2V
Operating Voltage Range :44.8~57.6V
Charging Voltage: 55.2V
Max. Charge/Discharge Current: 230A
Spec Sheet: Deye 16kw battery
