Description

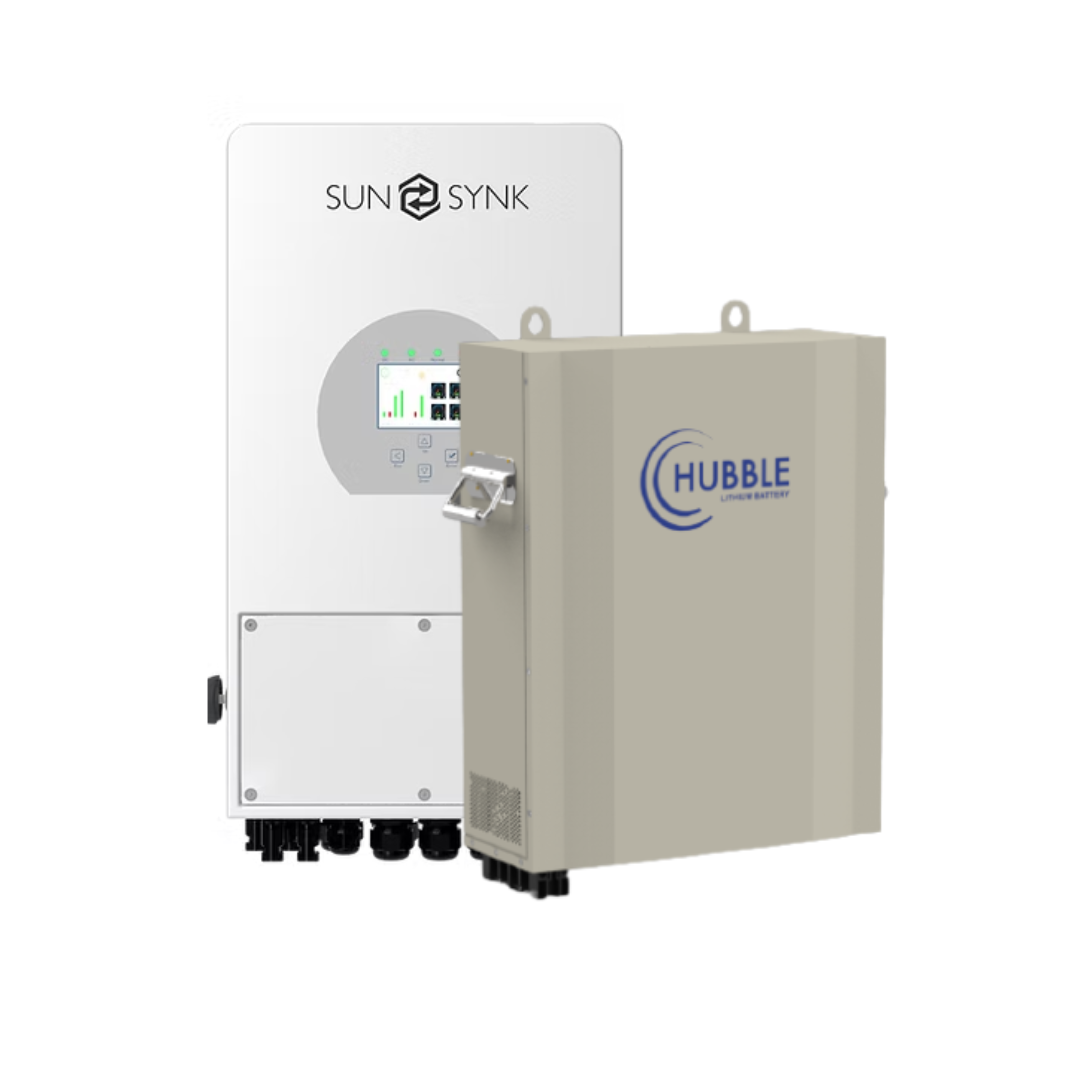

Make: Solar Kit II 3A- Sunsynk 8kW (Includes Hubble Am2)

Inverter

Battery input Data
Battery Type: Lead-acid or Lithium-ion
Battery Voltage Range:: (V) 40~60V
Max. Charging Current: (A)190A
Max. Discharging Current: (A)190A
Charging Curve: 3 Stages/Equalization
External Temperature Sensor: Optional
Charging Strategy for Li-Ion Battery: Self-Adaptation to BMS

PV string Input Data
Max. DC Input Power: (W)10400
PV Input Voltage: (V) 370V (100V~500V)
MPPT Range: (V)125~425V
Start-up Voltage: (V) 150V
PV Input Current (A): 22A+22A
No. of MPPT Trackers: 2
No. of Strings Per MPPT Tracker: 2+2

AC Output Data
Rated AC Output and UPS Power (W)8000W
Max. AC Power (W)8800
Peak Power (off-grid): 2 times of rated power, 10S
AC Output Rated Current (A): 33.4A/35A
Max AC Output Current (A): 38.3A/40A
Max Continuous AC Passthrough: (A)90A
Grid Type: Single Phase

Sunsynk 8kw  : Datasheet Sunsynk Inverters

Battery

Model: Hubble Am-2
Rated Capacity (5HR):100Ah
Nominal Voltage: 51.0V
Discharge Cutoff Voltage: 42.0V
Equalized Charge Voltage: 54.0V
Max. Continuous Charging Current:100A
Max. Continuous Discharging Current:100A
C Rating: 1.0C
Weight: Approx. 42kg
Display: None

Hubble am2:Am2 spec
