Description

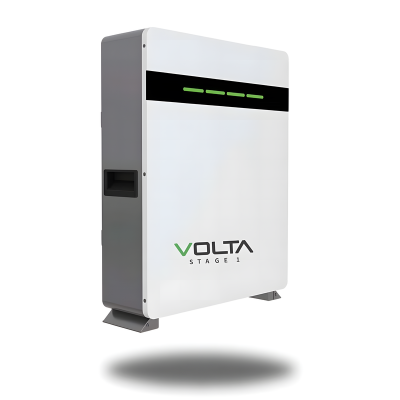

Make: Volta – 100A 51.2V – LFP
Designed Cycle Life: 6000 cycles @ 80%
Nominal Voltage: 51.2V
Nominal Capacity: 100Ah
Energy: 5.1kWh
Max Current: 100A
Recommended Recharge: 3 Hours at 40A
Boost / Absorption Voltage: 56V
Float Voltage: 55.2V
Cut-off Voltage: 44.8V
Standard charging Current: 40A
Recommended Discharge Rate: 0.5C
Size: Length x Width x Height: 480mm x 600mm x 150mm
Spec Sheet: VOLTA STAGE 1-Datasheet 0819S
Key features:
- Long cycle life
- Using high-quality lithium iron phosphate batteries, the cycle life is more than 6000 times at 80%DOD, and can be used for 10-15 years
- Intelligent BMS battery protection
- Built-in intelligent BMS (battery management system), effectively avoiding overcharge,
- Over discharge, overcurrent, short-circuit, balance and other problems
- High quality prismatic lithium iron phosphate battery
- Higher capacity, higher current, longer life
- Low internal resistance and high current
- Low internal resistance of the battery, excellent continuous high current discharge performance
- Good safety performance
- Extreme safety test, no fire, no explosion, no leakage
- Communicated with multiple brands inverter
same time battery BMS supports simultaneous
communication and docking with multiple brands invert
Superior Warranty:
- 5-year product warranty
