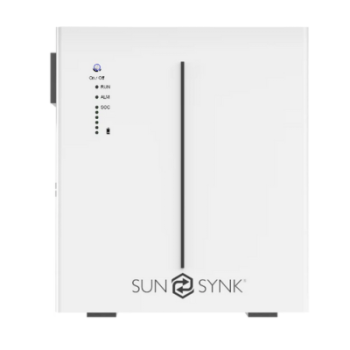

Sunsynk Wall Mount 15.97kWh 51.2V LFP – Wall Mount


Sunsynk Battery Max 312AH 15.97kWh 51.2V – wall or rack mount

• Nominal Capacity (kWh): 15.97

• Rated capacity: 312AH

• Operating voltage range: 55.65V to 56.16V


Sunsynk have produced a perfect storage solution. The module consists of Lithium ferro phosphate rechargeable batteries with 15.97kWh capacity rated at 51.2V 312Ah with a built-in battery management system.

The battery can be expected to remain serviceable for more than 10 years and this takes into consideration that it is charged and discharged once per day at room temperature (25°C).
Lithium ferro phosphate batteries provide excellent thermal stability and storage. The module also incorporates a self-monitoring function for the detection of any abnormalities in power storage.

General Data

  • Dimension( W×D×H mm ): 720×160×916mm.
  • Weight (Kg): 140kg.
  • Installation: Floor stand or Wall mounted.
  • Working Temperature 2: -20℃ ~ 60℃.
  • Storage Temperature: ≤25℃,12 months | ≤35℃,6 months | ≤45℃,3 months.
  • Operating / Storage / humidity: ≤ 95%RH.
  • Max Operating Altitude: ≤2000m.
  • IP Rating: IP20.
  • Cell Technology: LiFePO4,Lithium Iron Phosphate.
  • Cycle life 3: 6000 Cycles @ 80% DOD / 25℃ / 0.5C,60% EOL.
  • Scalability: Max 8 batteries in parallel.
  • Warranty: 5 Years.

Sunsynk Spec Sheet Download: SUN-BATT-15.97_datasheet

Extended Inverter Combination Warranty: 10 Year Battery + Inverter Warranty
