Sunsynk Battery Max 100AH 5.32kWh 51.2V Upgrade Kit – Fully Installed

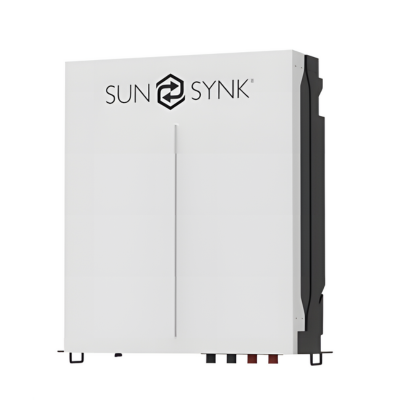

Sunsynk Battery Max 100AH 5.12kWh 51.2V – wall or rack mount

-Nominal Capacity (kWh): 5.12

-Rated capacity: 100AH

-Operating voltage range: 42V to 57.6V

-Installation Included


Sunsynk have produced a perfect storage solution. The module consists of Lithium ferro phosphate rechargeable batteries with 5.12kWh capacity rated at 51.2V 100Ah with a built-in battery management system.

The battery can be expected to remain serviceable for more than 10 years and this takes into consideration that it is charged and discharged once per day at room temperature (25°C).
Lithium ferro phosphate batteries provide excellent thermal stability and storage. The module also incorporates a self-monitoring function for the detection of any abnormalities in power storage.

General Data

  • Cell Type – Lithium Ferro Phosphate (LifePO4 or LFP)

  • Nominal Operating Voltage – 51.2V

  • Nominal Capacity – 100Ah / 5.12kWh

  • Depth of Discharge (DoD) – 100%

  • Usable Capacity – 5.12kWh

  • Packing – 1P16S

  • IP Rating – IP40

  • Minimum Operating Voltage – 44.8V

  • Maximum Operating Voltage – 57.6V

  • Standard Charging Current – 50A

  • Max. Continuous Charging Current – 50A

  • Standard Discharging Current – 50A

  • Max. Continuous Discharging Current – 100A (1C, 25°C ± 2°C)

  • Max. Pulse Discharging Current – 200A (2C, 30S, 25°C ± 2°C SOC≥40%)

  • Standard Charging Method – 0.5C CC to 57.6V, CV at 57.6V till current is 0.05C

  • Weight – 48kg

  • Dimensions – 440 x 530 x 132mm (not include connector, MSD and other parts)

  • Expected Life @ 25°C – Greater than 10 years if used as per warranty terms.

Sunsynk Spec Sheet Download: SUN-BATT-5.12 Datasheet

Extended Inverter Combination Warranty: 10 Year Battery + Inverter Warranty
