Description

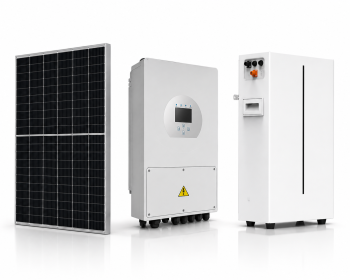

Make: Solar Kit – Sunsynk 16kW + Sunsynk 16kw Battey+ 16x Longi 640W ( Interchangeable with tier one panels)
Inverter
Brand: Sunsynk 16KW Single Phase Max Hybrid Inverter
Battery Input Data
Battery Type: Lead-acid or Lithium-ion
Battery Voltage Range: 43~60V
Max. Charge Current: 300A
Max. Discharge Current: 300A
Charging Curve: 3 Stages/Equalisation
External Temperature Sensor: YesPV String Input Data
Max. DC Input Power: 18000W
Max PV Input Voltage: 450V
MPPT Range: 250V~450V
Start-up Voltage: 150V
PV Input Current: 22A + 22A + 22A
Max. PV Isc: 26A + 26A + 26A
No. of MPPT / Strings Per MPPT 3 / 2AC Output Data
Max. On-Grid AC Power 16000W
Max. Off-Grid AC Power 13000W
Battery Voltage Range: 43~60V
Max. Charge Current: 300A
Max. Discharge Current: 300A
Charging Curve: 3 Stages/Equalisation
External Temperature Sensor: YesPV String Input Data
Max. DC Input Power: 18000W
Max PV Input Voltage: 450V
MPPT Range: 250V~450V
Start-up Voltage: 150V
PV Input Current: 22A + 22A + 22A
Max. PV Isc: 26A + 26A + 26A
No. of MPPT / Strings Per MPPT 3 / 2AC Output Data
Max. On-Grid AC Power 16000W
Max. Off-Grid AC Power 13000W
Battery
Brand: Sunsynk
Battery Chemsitry :LFP 1P16S
Total Energy :16.07kWh
Nominal Voltage : 51.2V
Operating Voltage Range :43.2~57.6V
Charging Voltage: 55.2V
Max. Charge/Discharge Current: 157A
Spec Sheet: Sunsynk-X-16.07kWh_Datasheet5
Panels – Longi 630W
Rated Power: 630W
Length: 2,382 mm
Width:1,134 mm
Depth: 30 mm
IMP: 14.43A
VMP: 44.36 V
VOC: 53.70 V
Temp. Coefficient (Mpp): -0.35 %
Spec Sheet:
Longi 640W – Hi-MO X10 Explorer LR7-72HVH 630-650M
