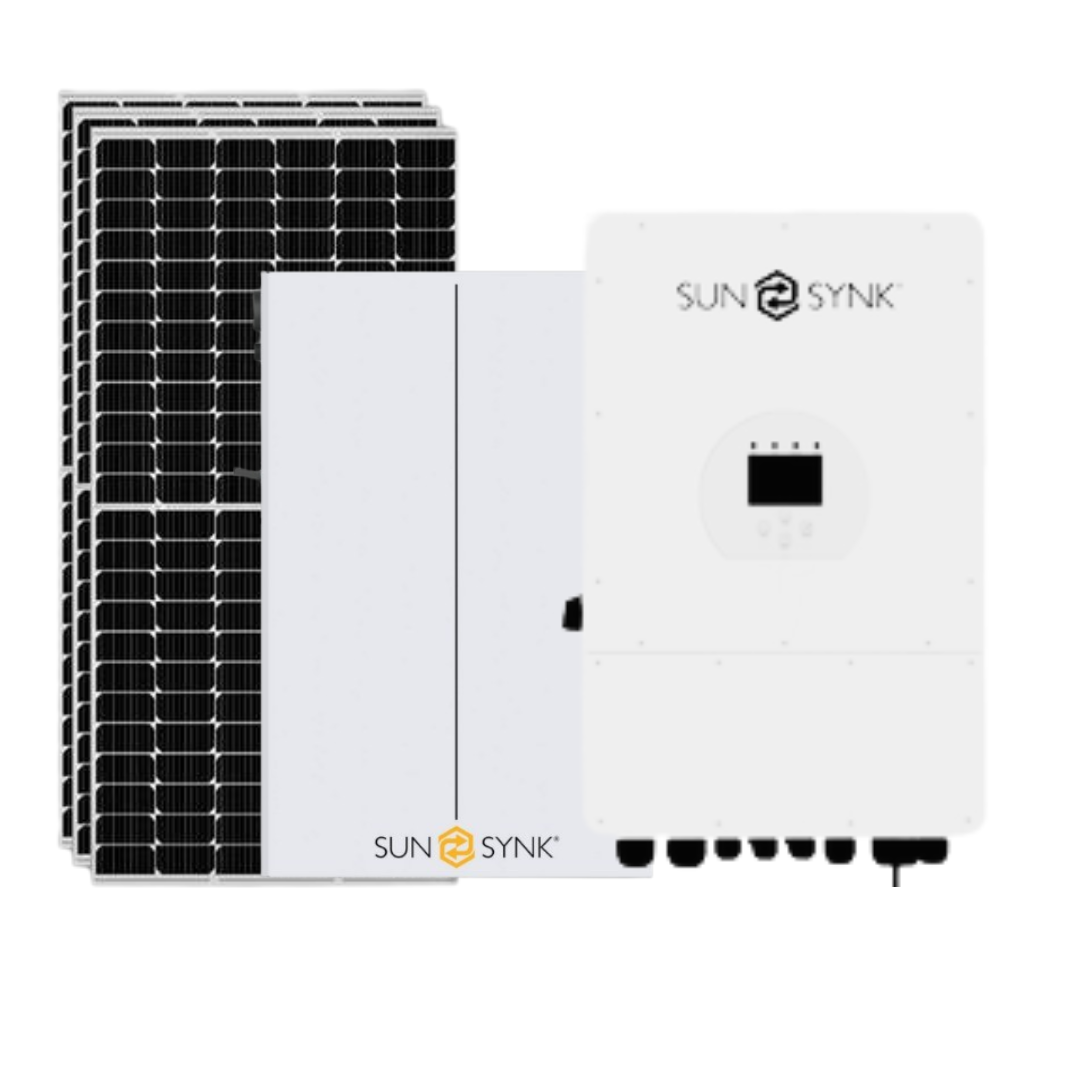

Make: Solar Kit II 3A- Sunsynk 10kW (Sunsynk 5.12kw and JA 630W Panels)

Battery input Data
Battery Type: Lead-acid or Lithium-ion
Battery Voltage Range:: (V) 40~60V
Max. Charging Current: (A)220A
Max. Discharging Current: (A)220A
Charging Curve: 3 Stages/Equalisation
External Temperature Sensor: Yes
Charging Strategy for Li-Ion Battery: Self-Adaptation to BMS

PV string Input Data
Max. DC Input Power: 13000W
Rated PV Input Voltage: 370V (125~500V)
Start-up Voltage: 125V
MPPT Voltage Range: 150V-425V
Full Load DC Voltage Range: 200V-425V
PV Input Current: 26A+26A+26A
Max. PV Isc: 44A+44A+44A
No. of MPPT / Strings Per MPPT: 3 / 2+2+2

AC Output Data
Rated AC Output Active Power: 10000
Max AC Output Active Power: 11000
AC Output Rated Current: 45.5/43.5A
Max. AC Output Current: 50/47.9A
Max. Continuous AC Passthrough: 70A
Peak Power (Off Grid): 2 Time of Rated Power, 10 S
Power Factor Adjustment Range: 0.8 Leading to 0.8 Lagging
Power Factor: 1

Sunsynk 10kw  : Datasheet Sunsynk Inverter

Battery Storage

Battery Chemistry LiFePO4
Nominal Energy: 5.12kWh
Nominal Capacity: 100Ah
Rated Voltage: 51.2Vdc
Operating Voltage Range: 43.2Vdc~57.6Vdc
Max. Charge/Discharge Current: 50A/100A
Scalability: ≤3, (Max. 8 in Parallel

Spec Sheet:Sunsynk_X5.12_Datasheet_v6_English

Solar Panels

Rated Maximum Power: 630
Open Circuit Voltage: 48.50
Maximum power Voltage: 40.21
Short circuit: 16.13
Maximum Power Current: 15.42
Module efficiency: 23.0
Power Tolerance: 0~+3%

Number of Units: 12

Data Sheet: JAM66D45 595-620 LB Global_EN_20240326A



Balance of System

1 x Keto 200 Amp Battery Disconnect Fuse Breaker

1 x 50m x 6mm SGN Solar Cable Red

1 x 50m x 6mm SGN Solar Cable Black

1 x 50m x 6mm Earth Cable

1 x Set Renusol Roof Mounts (Angle mounts or genius flashing slate covers not included)

1 x Solar Input Protection Protection Box 2 string in and 2 out

1 x AC Protection Box – Surge Arrestor/2 x 50Amp Breakers/63Amp Changeover

2 x Pairs MC4 connectors
