Solar Kit II 4A II- Sunsynk 8kW-2x Hubble Am5 - 5.49kW PV (fully Installed)

Solar Kit II 4A II- Sunsynk 8kW-2x Hubble Am5 – 5.49kW PV (fully Installed)

R98,781.72

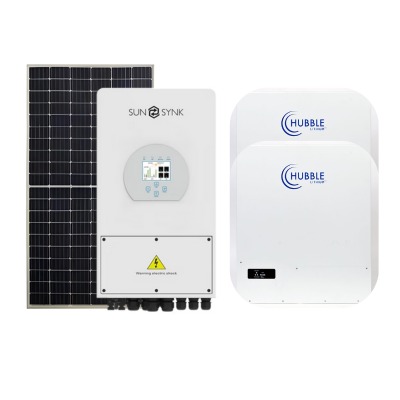

Inverter: Sunsynk 8kw Hybrid x1

Battery : Hubble Am5 5.12kw x 2

Panels : Ja 610W N-type bifacial x 9 (Interchangeable with Longi/Canadian/Jinko)

Mounts: IBR Rail ( Rails less mounting Solution) x 9

Cable : 6mm Red and Black 50m of each

All protections included

Includes COC

SKU: SH8kww-1 Categories: , Tags: ,
Hubble

Description

Make: Solar Kit II 3A- Sunsynk 8kW (Includes Hubble Am5 and JA 610W Panels)

Battery input Data
Battery Type: Lead-acid or Lithium-ion
Battery Voltage Range:: (V) 40~60V
Max. Charging Current: (A)120A
Max. Discharging Current: (A)120A
Charging Curve: 3 Stages/Equalisation
External Temperature Sensor: Optional
Charging Strategy for Li-Ion Battery: Self-Adaptation to BMS

PV string Input Data
Max. DC Input Power: (W)10400
PV Input Voltage: (V) 370V (100V~500V)
MPPT Range: (V)125~425V
Full Load DC Voltage Range: (V) 240~425V
Start-up Voltage: (V) 150V
PV Input Current (A): 11A+11A
No. of MPPT Trackers: 2
No. of Strings Per MPPT Tracker: 1+1

AC Output Data
Rated AC Output and UPS Power (W)8000W
Max. AC Power (W)8800
Peak Power (off-grid): 2 times of rated power, 10S
AC Output Rated Current (A): 33.4A/35A
Max AC Output Current (A): 38.3A/40A
Max Continuous AC Passthrough: (A)35A
Power Factor: 0.8 leading to 0.8 lagging
Output Frequency and Voltage: 50/60Hz; 220/230/240Vac (single phase)
Grid Type: Single Phase

Spec Sheets:

Panels : JAM66D45 595-620 LB Global_EN_20240326A

Sunsynk 8kw  : Datasheet Sunsynk Inverters

Hubble AM5 : AM-5-Flyer



Brand

Hubble
