Description

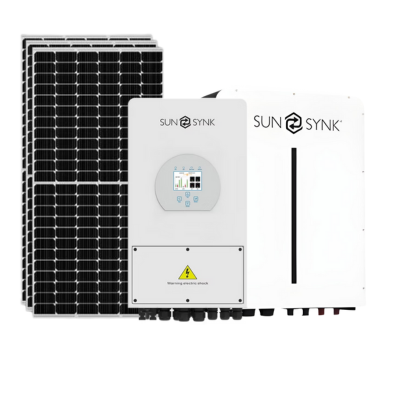

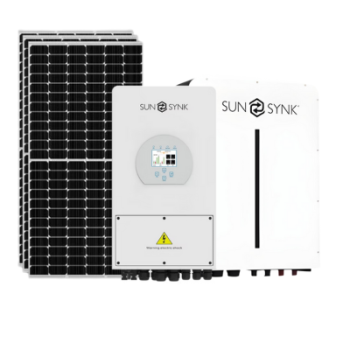

Make: Solar Kit II 3A- Sunsynk 5kW (Sunsynk 5.12kW X Battery and JA 620W Panels)

Battery input Data
Battery Type: Lead-acid or Lithium-ion
Battery Voltage Range:: (V) 40~60V
Max. Charging Current: (A)120A
Max. Discharging Current: (A)120A
Charging Curve: 3 Stages/Equalisation
External Temperature Sensor: Optional
Charging Strategy for Li-Ion Battery: Self-Adaptation to BMS

PV string Input Data
Max. DC Input Power: (W)6500W
PV Input Voltage: (V) 370V (100V~500V)
MPPT Range: (V)125~425V
Full Load DC Voltage Range: (V) 240~425V
Start-up Voltage: (V) 150V
PV Input Current (A): 11A+11A
No. of MPPT Trackers: 2
No. of Strings Per MPPT Tracker: 1+1

AC Output Data
Rated AC Output and UPS Power (W)5000W
Max. AC Power (W)5500W
Peak Power (off-grid): 2 times of rated power, 10S
AC Output Rated Current (A): 21.7A
Max AC Output Current (A): 25A
Max Continuous AC Passthrough: (A)35A
Power Factor: 0.8 leading to 0.8 lagging
Output Frequency and Voltage: 50/60Hz; 220/230/240Vac (single phase)
Grid Type: Single Phase

Sunsynk 5kw  : Datasheet Sunsynk Inverters

Battery Storage

Battery Chemistry: LiFePO4
Capacity: 100 (Ah)
Scalability: Max. 32 pcs in parallel (163.8kWh)
Nominal Voltage: 51.2 V
Operating Voltage: 44.8~57.6 V
Energy: 5.12 kWh
Usable Energy: 4.61 kWh

Spec Sheet : Sunsynk_X5.12_Datasheet_v6_English (1)

Solar Panels

Rated Maximum Power: 620
Open Circuit Voltage: 48.50
Maximum power Voltage: 40.21
Short circuit: 16.13
Maximum Power Current: 15.42
Module efficiency: 23.0
Power Tolerance: 0~+3%

Number of Units: 6

Data Sheet: JAM66D45 595-620 LB Global_EN_20240326A
