Description

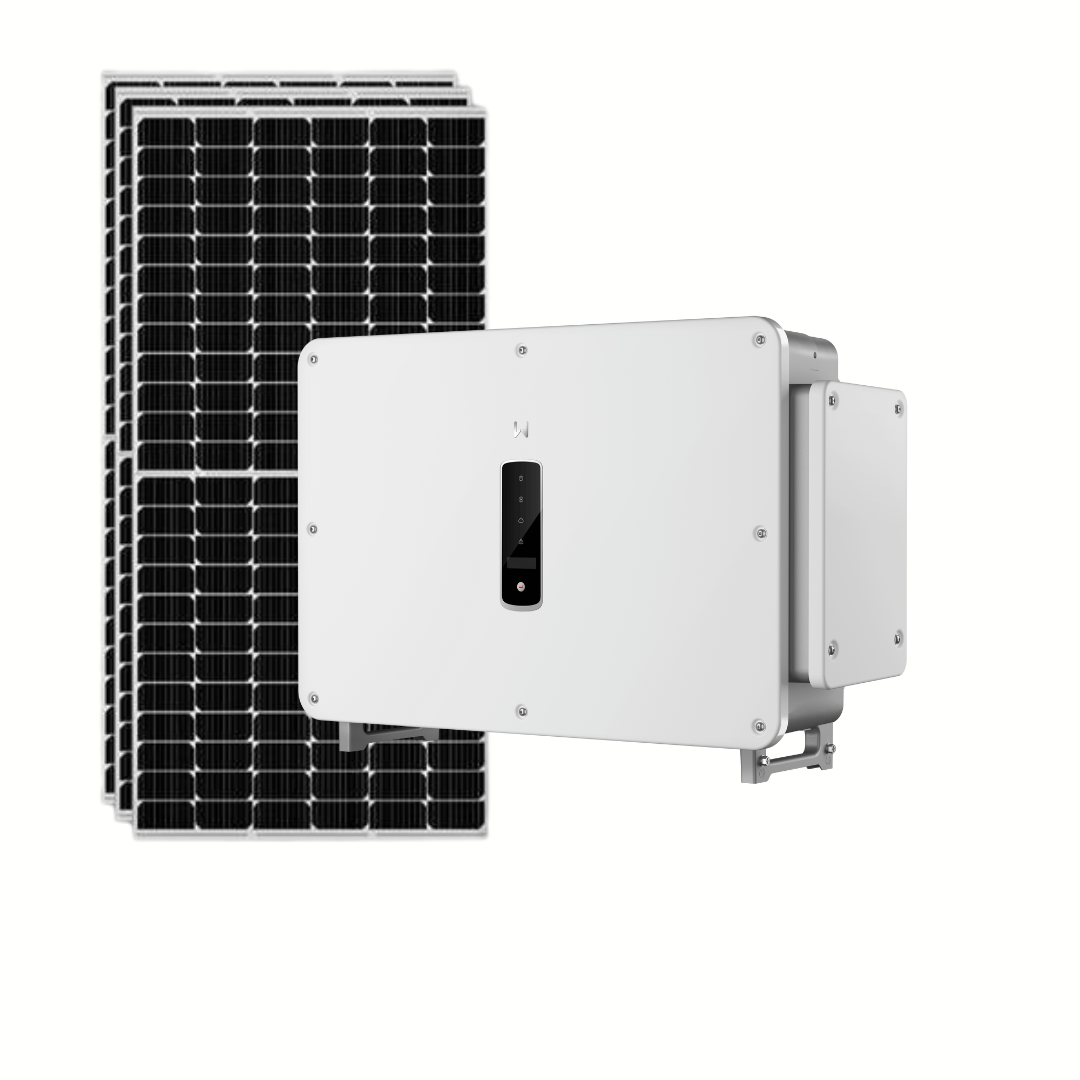

Make: Solar Kit 10B – 125kW Grid Tied System
Inverter
Max. Input Voltage (V): 1100
MPPT Operating Voltage Range (V): 180 ~ 1000
Start-up Voltage (V): 200
Nominal Input Voltage (V): 600
Max. Input Current per MPPT (A) 42
Max. Short Circuit Current per MPPT (A): 52.5
Number of MPP Trackers: 10
Number of Strings per MPPT: 2
Output
Nominal Output Power (kW) 125
Nominal Output Apparent Power (kVA) 125
Max. AC Active Power (kW): 137.5
Max. AC Apparent Power (kVA): 137.5
Output Voltage Range (V) 304 ~ 460
Efficiency
Max. Efficiency: 99.0%
European Efficiency: 98.5%
Protection
PV String Current Monitoring: Yes
PV Insulation Resistance Detection: Yes
Residual Current Monitoring: Yes
PV Reverse Polarity Protection: Yes
Spec Sheets:
Solar Panels
Rated Maximum Power: 620w
Open Circuit Voltage: 48.50
Maximum power Voltage: 40.21
Short circuit: 16.13
Maximum Power Current: 15.42
Module efficiency: 23.0
Power Tolerance: 0~+3%
Number of Units: 160
Total PV Capacity : 99.2KW
Expected daily generarion @ 5.5Hrs : 545.6kW
Data Sheet: Datasheet_-_Ja_Solar_JAM72D40_575-600_LB_(EN)_(2)[1]
Balance of System
2 x 1000V Isolation Box 6 Inputs 6 Outputs 16A Isolator
1 x Goodwe Sec1000
3 x CT Clamps for EPM
1 x Set Renusol Aluminum Roof Mounts (Angles not included) – MetaSol+ type for IBR Roof Types – Additional adaptor plates available for curved (wavy) zinc roof types.
1 x Set MC4 Connectors (36x Male/Female Pairs)
1 x 500m x 6mm Solar Cable Red
1 x 500m x 6mm Solar Cable Black
1 x 250m x 6mm Earth Cable
1 x SGN – 250A Grid Isolator 1 input, 1 output for 250A Systems
1 x SGN – 1 input 1 output Double Disconnect Unit for 250A Systems
1 x SGN – Three Phase AC Protection Box 1-In 1-Out 250A Type II SPD
System Performance
Solar Deployed: 99.2kW
Expected Daily Generation: 545.6kWh @ 5.5 hours
