Description

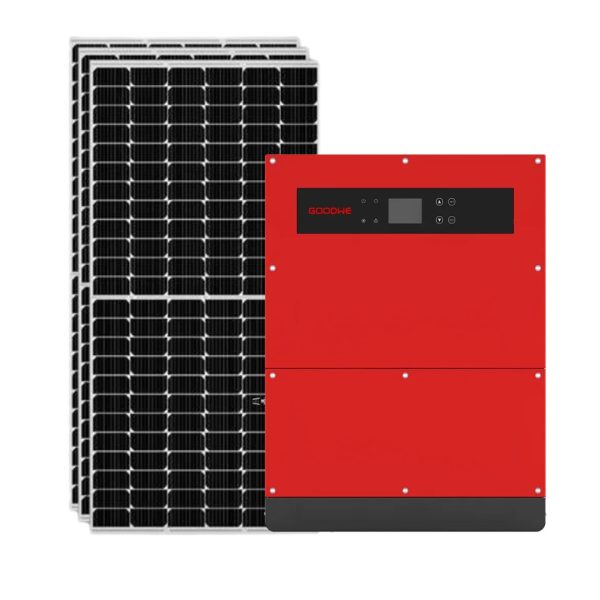

Make: Solar Kit 10 – 50kW Grid Tied System
Inverter
DC Input Data
Max. PV Power (W) 65000
Max. DC Input Voltage (V) 1100
MPPT Range (V) 200~1000
Starting Voltage (V) 200
Min. Feed-in Voltage (V) 210
Nominal DC Input Voltage (V) 620
Max. Input Current per MPPT (A) 33 / 33 /22 / 22
Max. Short Circuit Current per MPPT (A): 41.5 / 41.5 /27.5 / 27.5 41.
Number of MPPTs 4
Number of Strings per MPPT 3 / 3 /2 / 2
AC Output Data
Nominal Output Power (W): 50000
Max. AC Active Power: 55000; 57500
Max. Output Power (VA): 55000; 57500b
Nominal Ouput Frequency (Hz) 50 / 60
Output Power Factor: -1 (Adjustable from 0.8 leading to 0.8 lagging)
Output THDi (@Nominal Output) <3%
Efficiency
Max. Efficiency 98.7%
European Efficiency 98.3%
Protection
PV String Current Monitoring : Yes
Anti-Islanding Protection: Yes
Input Reverse Polarity Protection : Yes
Insulation monitoring ;Yes
DC fuse : Yes
Spec Sheets:
Solar Panels
90x JA Solar 550W Mono PERC Half-Cell MBB MC4 with 30mm frame thickness (Interchangeable with Longi /Canadian/Jinko)
Spec Sheets:
Balance of System
1 x 1000V Protection Box 6 Inputs 6 Outputs 20A Isolator Type II SPD
1 x Goodwe SEC1000
1 x Set Renusol Aluminum Roof Mounts (Angles not included)
1 x Set MC4 Connectors (12 x Male/Female Pairs)
3 x 100m x 6mm Solar Cable Red
3 x 100m x 6mm Solar Cable Black
2x 100m x 6mm Earth Cable
System Performance
Solar Deployed: 49.9kWp
Expected Daily Generation: 249.5 kWh @ 5.5 hours
