Description

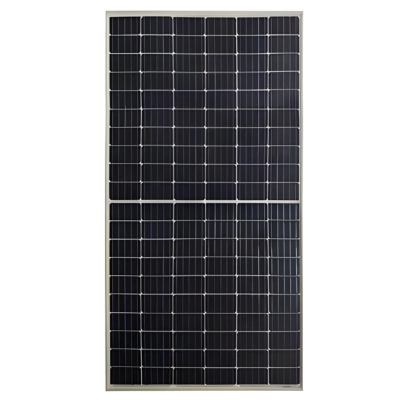

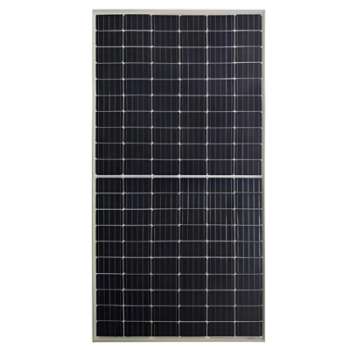

Make: Jinko 555W Tiger Pro
Weight: 30.6 kg
Rated Power: 550W
Length: 2,385 mm
Width: 1,122 mm
Depth: 35 mm
VMPP: 44.19V
IMPP: 12.56A
Voc: 52.80V
Temp. Coefficient (Mpp): -0.35%
Clamp position on panel: Long and short side
Connector Type: MC4
Efficiency: 21.6%
Rated Power: 550W
Length: 2,385 mm
Width: 1,122 mm
Depth: 35 mm
VMPP: 44.19V
IMPP: 12.56A
Voc: 52.80V
Temp. Coefficient (Mpp): -0.35%
Clamp position on panel: Long and short side
Connector Type: MC4
Efficiency: 21.6%
Download Data Sheet: Jinko-Solar-Tiger-Pro-TR-Monofacial-JKM555-575M
Key features:
- High output power
- Low shading effect
- Lower temperature coefficient
- Better mechanical loading tolerance
- 20.4 Module efficiency
- This panel has a multi-busbar Half Cut Mono Cell technology with high efficiency passivated backside – PERC – (Passivated Emitter and Rear Cell) for increased efficiency and yield.
Comprehensive Certificates:
- ISO9001:2015, ISO14001:2015, ISO45001:2018 Certified factor
- IEC61215, IEC61730
Superior Warranty:
- 12-year product warranty
- 25-year linear power output warranty
