Description

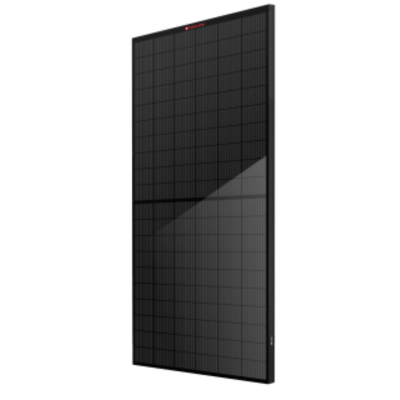

Make: JA Solar 405W Mono MBB PERC Half-Cell All Black MC4
Weight: 21.5 kg
Rated Power: 405W
Length: 1,722 mm
Width: 1,134 mm
Depth: 30 mm
VMPP: 31.21 V
IMPP: 12.98 A
Voc: 40.87 V
Temp. Coefficient (Mpp): -0.35 %
Clamp position on panel: Long and short side
Connector Type: MC4
Efficiency: 20.7 %
Download Data Sheet JAP72S01 SC 315-335 1000V Global_EN__20170905A (002)
Key features:
- 5BB design reduces cell series resistance and stress between cell interconnections to improve module reliability a conversion efficiency
- High out put, up tp 17.25% module conversion efficiency
- Certified with 1000V DC IEC standard
- Anti-soiling surface reduces power loss from dirt and dust
- Outstanding performance with low light irradiance environments
- Strong salt and ammonia resistance certified by TUV NORD
Comprehensive Certificates:
- IEC61215, IEC 61730, CEC listed, MCS and CE
- ISO 9001:2008: Quality management systems
- ISO 14001:2004 Environmental management systems
- BS OHSAS 18001:2007: Occupational health and safety management systems
- Environmental policy: The first solar company in China to complete Intertek’s carbon footprint evaluations program and receive green leaf mark verification for our product.
Superior Warranty:
- 12-year product warranty.
- 25-year linear power output warranty.
