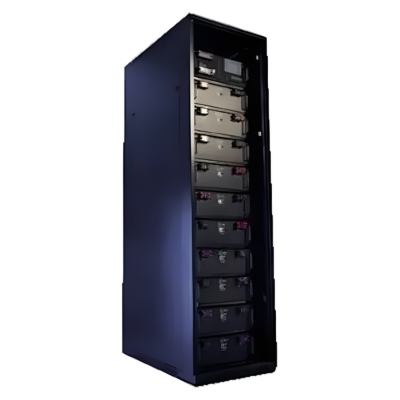

Hubble Lithium HV 51.2kWh System

R266,351.50

Model:Hubble Lithium HV 51.2kWh System

Rated Capacity @ 5hr – 150Ah

Nominal Voltage: 51200 Wh

Max Charging Rate 5 Minutes: 51200 W

Max Discharging Rate 5 Minutes: 51200 W

Description

Product Features
  • 1C battery capable of providing a continuous charge/discharge power of 51.2kW.
  • 100% DoD.
  • Intelligent Touch Screen.
  • Wi-Fi enabled cloud monitoring.
  • Parallel – up to 8 stacks giving a total storage capacity of 409.6kW.
  • Rack mount format for ease of installation.
  • Over 6000 cycles at 80% DoD and up to 4000 cycles at 100% DoD.
  • 10-year warranty, 15-year design life for the battery cells.

General information:

Battery Type: LiFePO4 (Lithium Iron Phosphate)
Usable Capacity: 51.2kWh
Nominal Voltage: 51200 Wh
Parallel: up to 8 units per string
Equalized Charge Voltage: 557V
Operating Temperature Range: -10°C –55°C
Cycle Life @ Above 6000 cycles @ 80% DOD, +/- 4 000 Cycles @ 100% DOD
Dimensions (mm): Standard 47U Cabinet dimensions: 2200 (H) x 693 (W) x 1102 (D)
Weight (kg): 570
Warranty Period: 15 Years
Specification Sheet:HV-512 Brochure V1.1
Installation Manual: Hubble High Voltage Manual –

Additional information

Voltage

High Voltage

Brand

Hubble
