Sale!

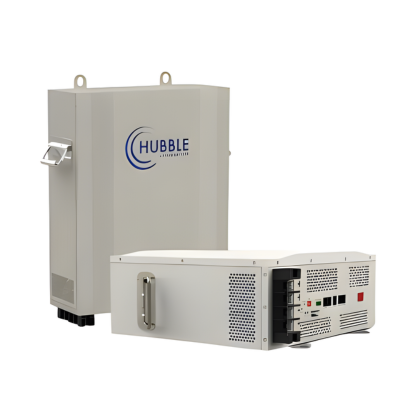

Hubble 5.5kWh 48v AM 2 Lithium Battery

Original price was: R23,011.50.Current price is: R22,011.78.

Model: Hubble Am 2

Rated Capacity @ 5hr – 110Ah

Nominal Voltage: 51 V

Max Charging Current: 100A

Max Discharging Current: 100A

Description

Product Features
  •  Advanced BMS with current limiting function
    • CAN Bus, fully integrates and communicates with leading Inverter brands
    • Excellent high temperature performance
    • High Cycle Life and Service Life
    • RIOT integration ready for cloud monitoring
    • 1C High Performance Lithium battery
    • High Energy Density and conversion efficiency
    • Complete with integrated Battery Management System
    • Compatible with most Inverters and chargers
    • Low self discharge
    • Easy wall mount or shelf rack installation
    • Heavy duty side handles for easy handling and mounting on the wall
    • Built in protection for over-charge, over-discharge & over-temperature

General information:

Battery Type: LiFePO4 (Lithium Iron Phosphate)
Usable Capacity: 5500 Wh
Nominal Voltage: 51 VDC
Parallel: up to 15 units per string
Operating Voltage Range: 42 VDC – 54 VDC
Operating Temperature Range: -10°C –55°C
Cycle Life @ 100% DoD: >3000 cycles
Cycle Life @ 50% DoD: >6000 cycles
Dimensions (mm): 375mm x 145mm x 467mm (W x D x H)
Weight (kg): 42 kg
Warranty Period: 10 Years
RIOT Cloudlink Ready: Yes
Specification Sheet: Hubble AM 2 Spec Sheet
Installation Manual: Hubble Am 2 Installation Manual

Additional information

Voltage

48V

Brand

Hubble
