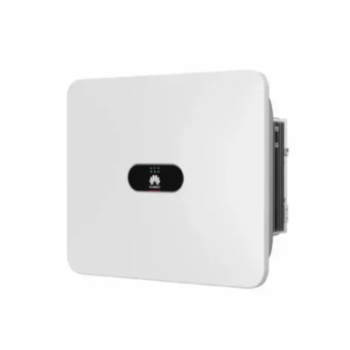

Huawei SUN2000 20KTL 20kW 3phase Inverter


String Inverter (SUN2000-20KTL)

Max of 3 MPPT for versatile adaption to different module types or quantities       built up with different alignments
Up to 6 strings intelligent monitoring and fault detection
–  Exceptionally wide MPPT range.
–  No string fusing required
RS 485 and USB ports for connectivity and data management
Local graphic LCD and optional remote monitoring via the NetEco portal or app.

Maximum efficiency 98.6%
–  European efficiency 98.3%
–  <1W consumption during the night

–  Type II DC and AC surge protection devices integrated
–  Noise ≤ 29dB, Class-B electromagnetic radiation
–  RCD protection function

–  Product warranty of 5 years, with the option to extend to up to 10.
–  Natural cooling technology with heat sink
–  Outdoor application of IP65

Stock Availability:  Due 16 Nov 2018



Part No:  SUN2000-20KTL
Weight:  57 kg
Rated Power:  20,000 W
Min PPT Voltage:  200 V
Max PPT Voltage:  950 V
DC Startup Voltage:  480 V
DC Shutdown Voltage:  200 V
Max Input Voltage:  1,000 V
Max DC Power:  22,500 W
Max AC Power:  22,000 W
Max DC Current:  54 A
Max DC Inputs:  6
Has DC Fuses:  0
Connector:  Amphenol H4
Included Connectors:  6
Euro Efficiency:  98.3 %
Transformer:  None
MPPT Trackers:  3
Has Integrated DC Switch:  Yes
Warranty:  5 years

Download Data Sheet:  HUAWEI SUN2000-17-20KTL 3Ph Inverter
