Description

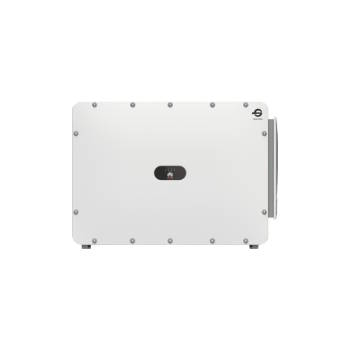

Make: Huawei SUN2000-150KTL-MG0 – 150kW 3 Phase Grid Tie
Max. Input Voltage: 1,100 V
Max. Current per MPPT: 48A
Max. Current per Input: 23A
Max. Short Circuit Current per MPPT: 66A
Start Voltage: 200 V
MPPT Operating Voltage Range: 200 V ~ 1,000 V
Number of MPP trackers: 7
Max. input number per MPP tracker: 3
Nominal AC Active Power: 150,000 W
Max. AC Apparent Power: 165,000 VA
Max. AC Active Power (cosφ=1): 165,000 W
Nominal Output Voltage: 380 V/400 V/480Vac
Rated AC Grid Frequency: 50 Hz / 60 Hz
Nominal Output Current: 227.9 A @380 V, 216.5 A @400 V, 180.4A @480Vac
Max. Output Current: 253.2 A @380 V, 240.5 A @400 V, 200.5A @480Vac
Adjustable Power Factor Range: 0.8 leading… 0.8 lagging
Spec Sheet: Huawei SUN2000-150KTL-MG0 Datasheet EN
Key features:
- Arc Fault Protection
- PID Recovery
- MBUS
- Smart Connector Temperature Detector
- Smart String Level Disconnector
- Smart Connector Temperature Detector
